A common ask from teams evaluating Sigma is migrating their Hex footprint — usually to trade a notebook built and maintained by a single analyst for a live-query workspace the whole team can drive without touching SQL or Python. The conversion itself is often the thing that stalls the project.

Hex projects mix SQL cells, Python cells, and chart cells into a single notebook, then publish that notebook as an interactive app. Rebuilding one in Sigma by hand means tracing which SQL cell feeds which chart, translating any Python transformation logic into a Sigma formula or data model step, and rebuilding the input parameters as Sigma controls — then eyeballing the numbers and hoping nothing drifted. Done on a single project it's tedious. Across a real Hex workspace — dozens of projects, shared cells, and Python-heavy transformations — it's the reason migration projects slip.

This QuickStart walks through a Claude Code skill called hex-to-sigma that automates the loop.

Point it at your exported Hex project file; it parses the SQL cells, KPI cards, and charts directly from the export — Hex's API doesn't expose cell content, so there's no credential dance to set up, just the export itself. It translates each SQL cell into a Sigma data model element, each KPI and chart into a matching Sigma workbook element, mirrors the app's layout on Sigma's grid, and runs a parity pass comparing Sigma's results against the live warehouse. It surfaces a punch list of anything it couldn't auto-translate — Python cells chief among them — instead of silently producing a broken workbook.

Sample project

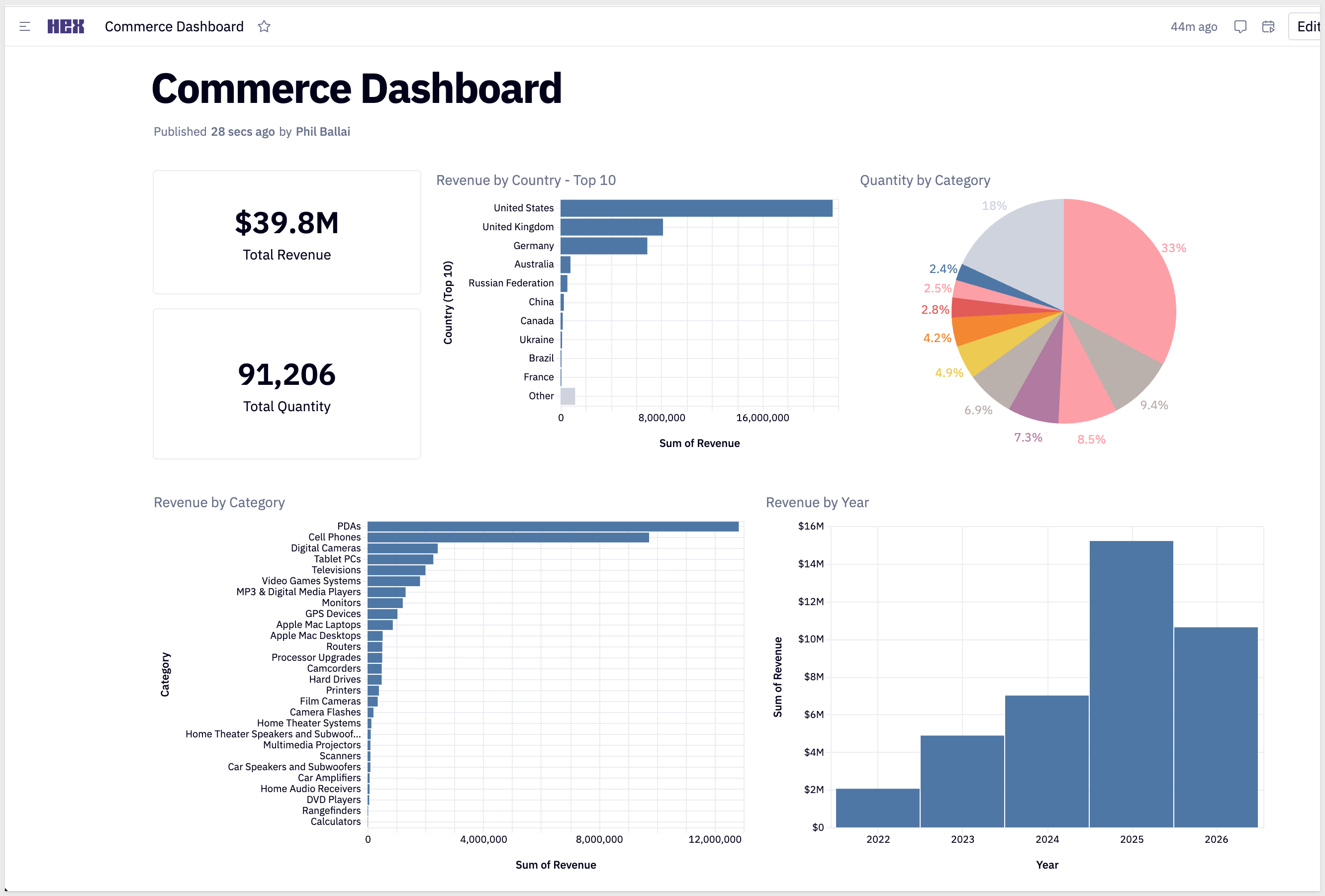

For the demonstration, we'll convert a Hex project called Commerce Dashboard — a Commerce e-commerce dataset with proven-out numbers and warehouse tables.

We provide the exported .hex.yaml file directly, so you're not building the source project from scratch just to see the conversion — import it into your own Hex workspace, or hand the file straight to the skill.

You'll see the discovery artifacts each phase produces, the converter's breakdown of how each Hex cell mapped to a Sigma formula or data model step, the parity report against the live warehouse, and the resulting Sigma data model and workbook landed in your org — along with the gap list of items to hand-polish:

Target Audience

Sigma SEs, technical CSMs, and migration partners running Hex-to-Sigma conversions.

Prerequisites

Sigma Free Trial

Footer

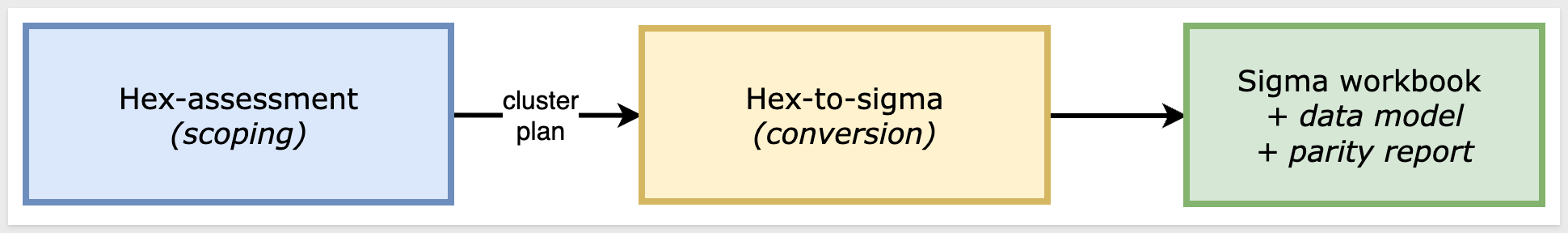

hex-to-sigma ships alongside a companion scoping skill, hex-assessment, as a single repo (cloned in the next section).

Skill

Role

When to reach for it

hex-assessment

Scoping

Auditing a Hex workspace before committing to a conversion plan — inventories projects via Hex's admin API and flags likely duplicates. It's an early-stage companion: per-project complexity scoring (cell-type mix, Python-cell prevalence, chart-type coverage) is still on the roadmap, so treat it as a starting inventory rather than a full readiness readout today.

hex-to-sigma

Conversion

The subject of this QuickStart. Converts a single Hex project to a Sigma data model and matching workbook with verified parity against the warehouse.

What this enables beyond a single conversion

A pure lift-and-shift is the floor, not the ceiling.

Footer

First we need to clone the skill's GitHub repository and capture your Sigma credentials. Unlike the rest of the migration family, there's no source-tool credential step here — hex-to-sigma discovers a project from its exported file (or a Git repo, should you extend the skill to do that), not an API, so Hex never needs an API key or session token.

The two skills live in sigmacomputing/quickstarts-public under hex-migration-skills/

From a terminal, run each command below one at a time so you can confirm each step before moving on.

Step 1: Create a local folder for the clone

mkdir -p ~/quickstarts-public

Step 2: Move into the new folder

cd ~/quickstarts-public

Step 3: Clone the repo without pulling any files yet

git clone --filter=blob:none --sparse https://github.com/sigmacomputing/quickstarts-public.git .

Step 4: Fill in only the hex-migration-skills folder

git sparse-checkout set hex-migration-skills

Step 5: Symlink hex-to-sigma into the Claude skills folder

ln -s ~/quickstarts-public/hex-migration-skills/hex-to-sigma ~/.claude/skills/hex-to-sigma

Step 6: Symlink hex-assessment

ln -s ~/quickstarts-public/hex-migration-skills/hex-assessment ~/.claude/skills/hex-assessment

Steps 5 and 6 should return with no error.

divider

Step 7: Add your Sigma API credentials.
 Written to ~/.sigma-migration/env:

cat >> ~/.sigma-migration/env <<'EOF'
export SIGMA_BASE_URL='https://api.us-a.aws.sigmacomputing.com'
export SIGMA_CLIENT_ID='{your-client-id}'
export SIGMA_CLIENT_SECRET='{your-client-secret}'
EOF

Get SIGMA_CLIENT_ID and SIGMA_CLIENT_SECRET from Sigma under Administration > Developer Access > Create New Client Credentials (requires Admin role).

For information, see: Generate Sigma API client credentials

SIGMA_BASE_URL must match your Sigma deployment region.

The value shown (https://api.us-a.aws.sigmacomputing.com) covers AWS US.

To find the correct URL for your instance, see: Supported regions, data platforms, and features

divider

Step 8: Verify Claude Code can invoke the skill.

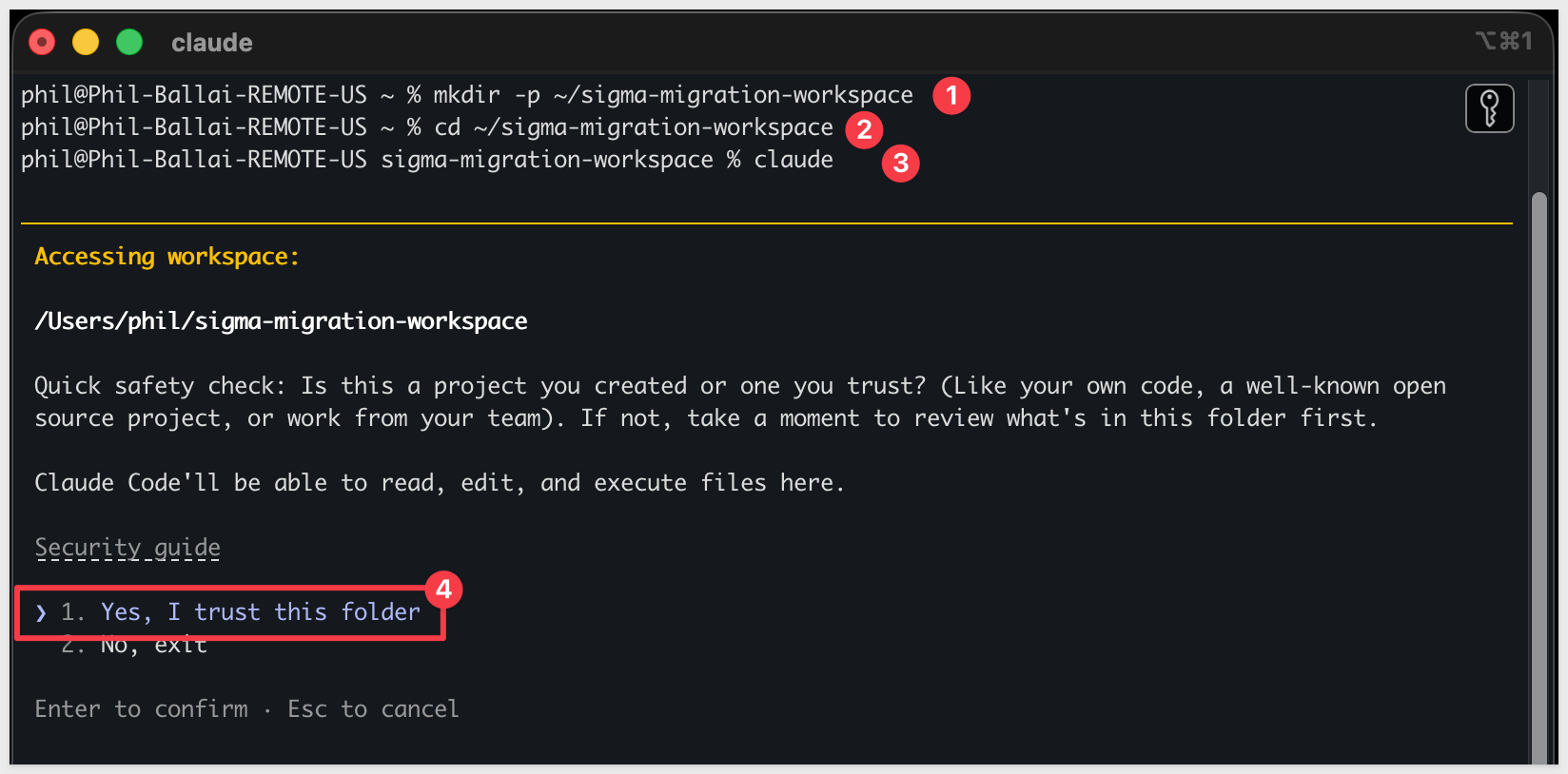

 Type claude in your terminal to start Claude Code, then invoke the skill:

claude

/hex-to-sigma

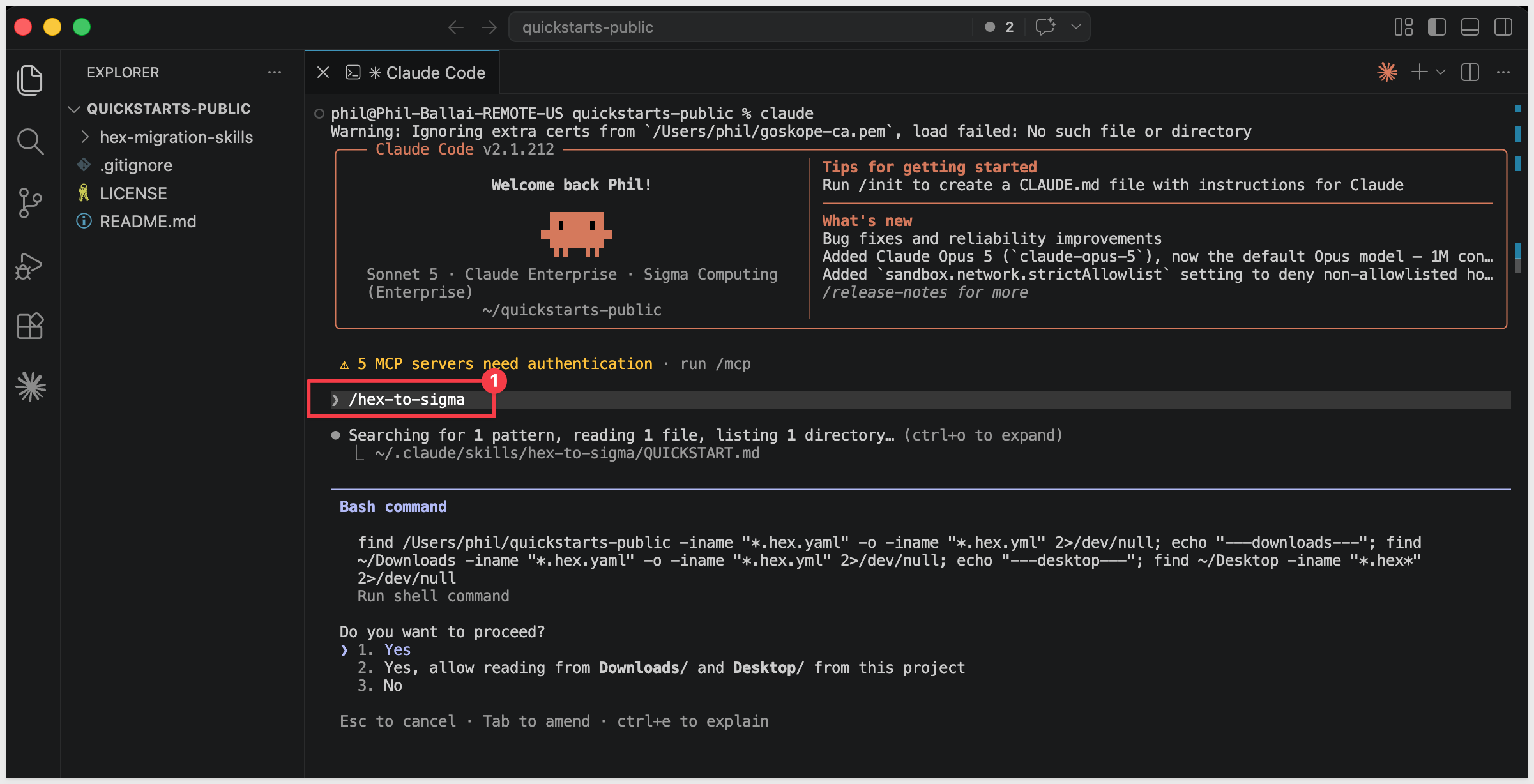

Claude searches your machine for a .hex.yaml export and asks for approval to run that search:

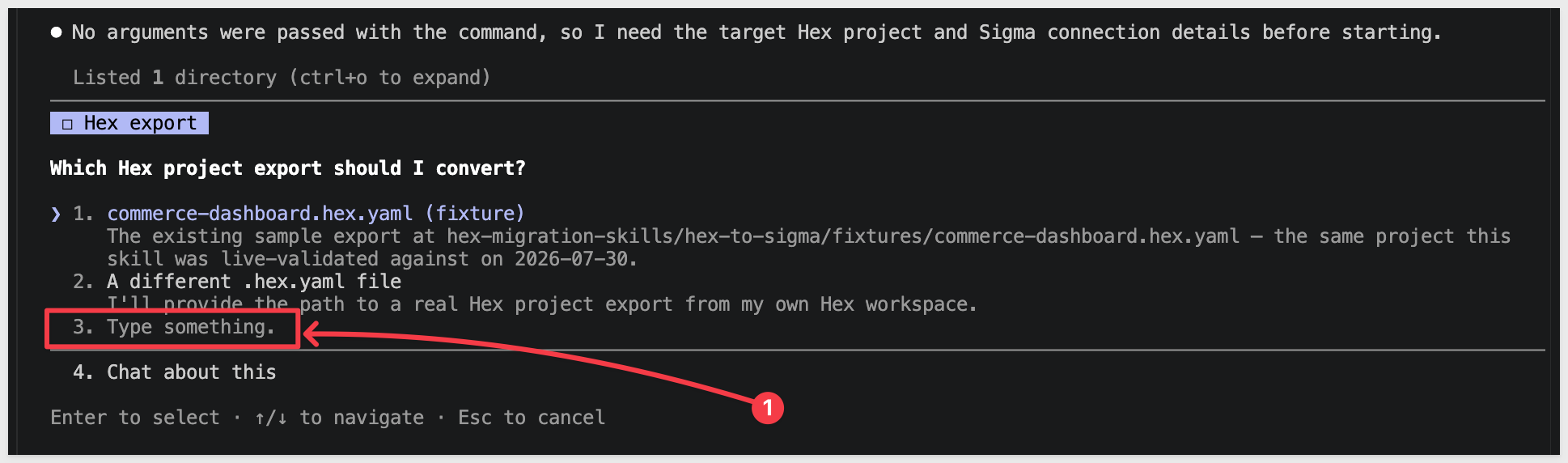

Once approved, Claude asks which Hex project export to convert:

Pause here — select 3. Type something once you're ready with the kickoff prompt from the next section.

Footer

The demo uses the same four Commerce e-commerce tables used across the migration skill family — including Migrating From Cognos Made Easy. Both Hex and Sigma will query these tables directly, which is what makes the parity check meaningful.

Run the following script in Snowflake. It creates the schema, stages the source files from S3, loads the tables, and grants read access to the Sigma service role.

USE ROLE ACCOUNTADMIN;
USE WAREHOUSE COMPUTE_WH;

CREATE DATABASE IF NOT EXISTS QUICKSTARTS;
CREATE SCHEMA  IF NOT EXISTS QUICKSTARTS.HEX_ECOMMERCE;
USE SCHEMA QUICKSTARTS.HEX_ECOMMERCE;

CREATE OR REPLACE FILE FORMAT HEX_csv_format
  TYPE = CSV
  FIELD_DELIMITER = ','
  FIELD_OPTIONALLY_ENCLOSED_BY = '"'
  NULL_IF = ('', 'NULL')
  EMPTY_FIELD_AS_NULL = TRUE
  PARSE_HEADER = TRUE;

CREATE OR REPLACE STAGE HEX_ecommerce_stage
  URL = 's3://sigma-quickstarts-main/HEX/'
  FILE_FORMAT = HEX_csv_format;

CREATE OR REPLACE TABLE BRAND (
  "Brand ID" NUMBER,
  "Brand"    VARCHAR
);

CREATE OR REPLACE TABLE CATEGORY (
  "Category ID" NUMBER,
  "Category"    VARCHAR
);

CREATE OR REPLACE TABLE COUNTRY (
  "Country ID" NUMBER,
  "Country"    VARCHAR
);

CREATE OR REPLACE TABLE COMMERCE (
  "Visit ID"    NUMBER,
  "Date"        DATE,
  "Brand ID"    NUMBER,
  "Category ID" NUMBER,
  "Country ID"  NUMBER,
  "Revenue"     FLOAT,
  "Quantity"    NUMBER,
  "Cost"        FLOAT,
  "Age Range"   VARCHAR,
  "Gender"      VARCHAR,
  "Condition"   VARCHAR
);

COPY INTO BRAND    FROM @HEX_ecommerce_stage/BRAND.csv    MATCH_BY_COLUMN_NAME = CASE_INSENSITIVE;
COPY INTO CATEGORY FROM @HEX_ecommerce_stage/CATEGORY.csv MATCH_BY_COLUMN_NAME = CASE_INSENSITIVE;
COPY INTO COUNTRY  FROM @HEX_ecommerce_stage/COUNTRY.csv  MATCH_BY_COLUMN_NAME = CASE_INSENSITIVE;
COPY INTO COMMERCE FROM @HEX_ecommerce_stage/COMMERCE.csv MATCH_BY_COLUMN_NAME = CASE_INSENSITIVE;

SELECT 'BRAND'    AS TBL_NAME, COUNT(*) AS ROW_COUNT FROM BRAND
UNION ALL
SELECT 'CATEGORY', COUNT(*) FROM CATEGORY
UNION ALL
SELECT 'COUNTRY',  COUNT(*) FROM COUNTRY
UNION ALL
SELECT 'COMMERCE', COUNT(*) FROM COMMERCE;

GRANT USAGE  ON DATABASE QUICKSTARTS                               TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE  ON SCHEMA   QUICKSTARTS.HEX_ECOMMERCE                 TO ROLE SIGMA_SERVICE_ROLE;
GRANT SELECT ON ALL    TABLES IN SCHEMA QUICKSTARTS.HEX_ECOMMERCE  TO ROLE SIGMA_SERVICE_ROLE;
GRANT SELECT ON FUTURE TABLES IN SCHEMA QUICKSTARTS.HEX_ECOMMERCE  TO ROLE SIGMA_SERVICE_ROLE;

SELECT
  ROUND(SUM("Revenue"), 3) AS TOTAL_REVENUE,
  SUM("Quantity")          AS TOTAL_QUANTITY
FROM COMMERCE;

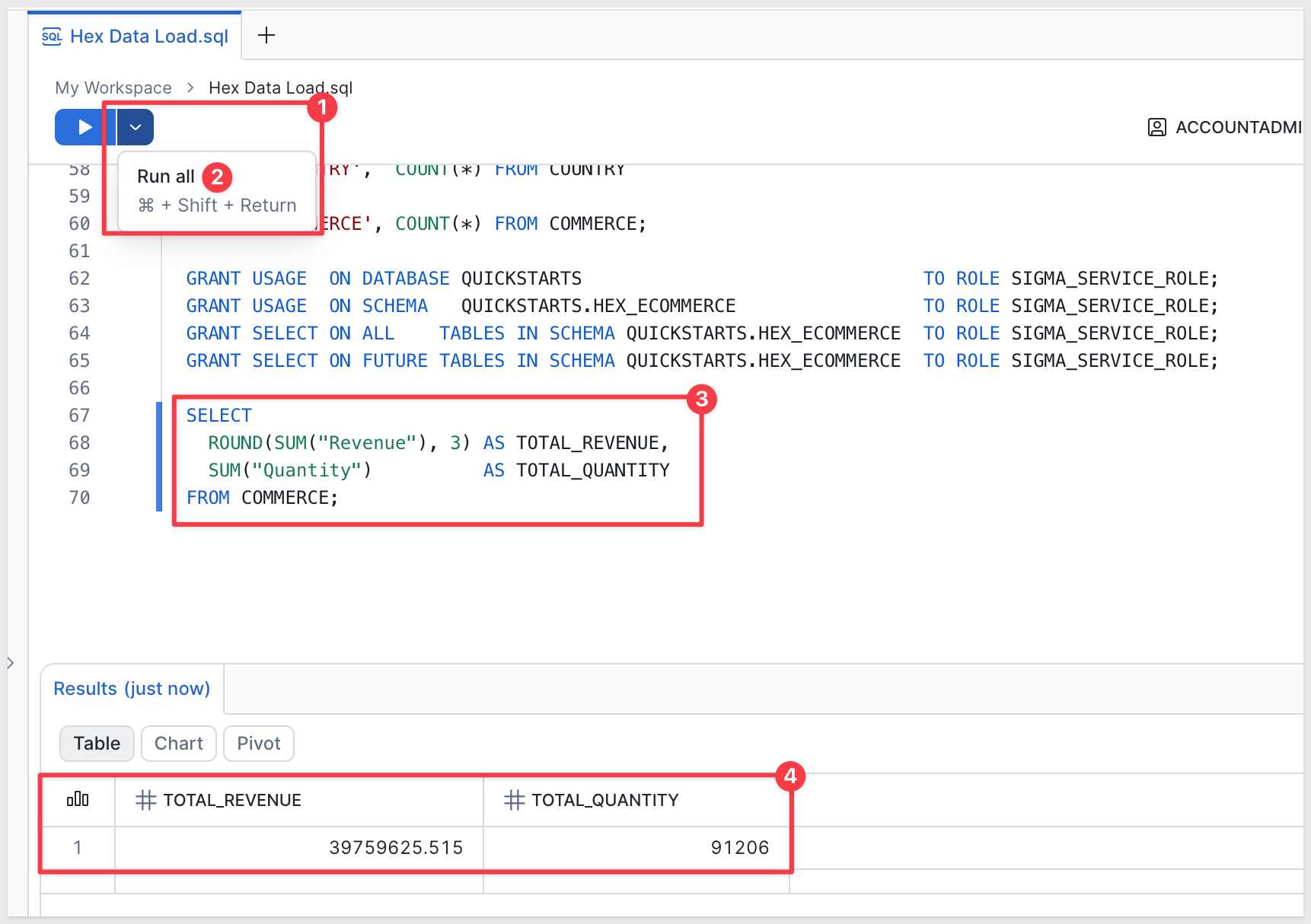

The final query confirms the load. Expected results: 613,002 rows in COMMERCE, total revenue 39,759,625.515, total quantity 91,206:

Footer

The skill lands workbooks in a Sigma folder. Create a dedicated folder now so the output is organized from the start.

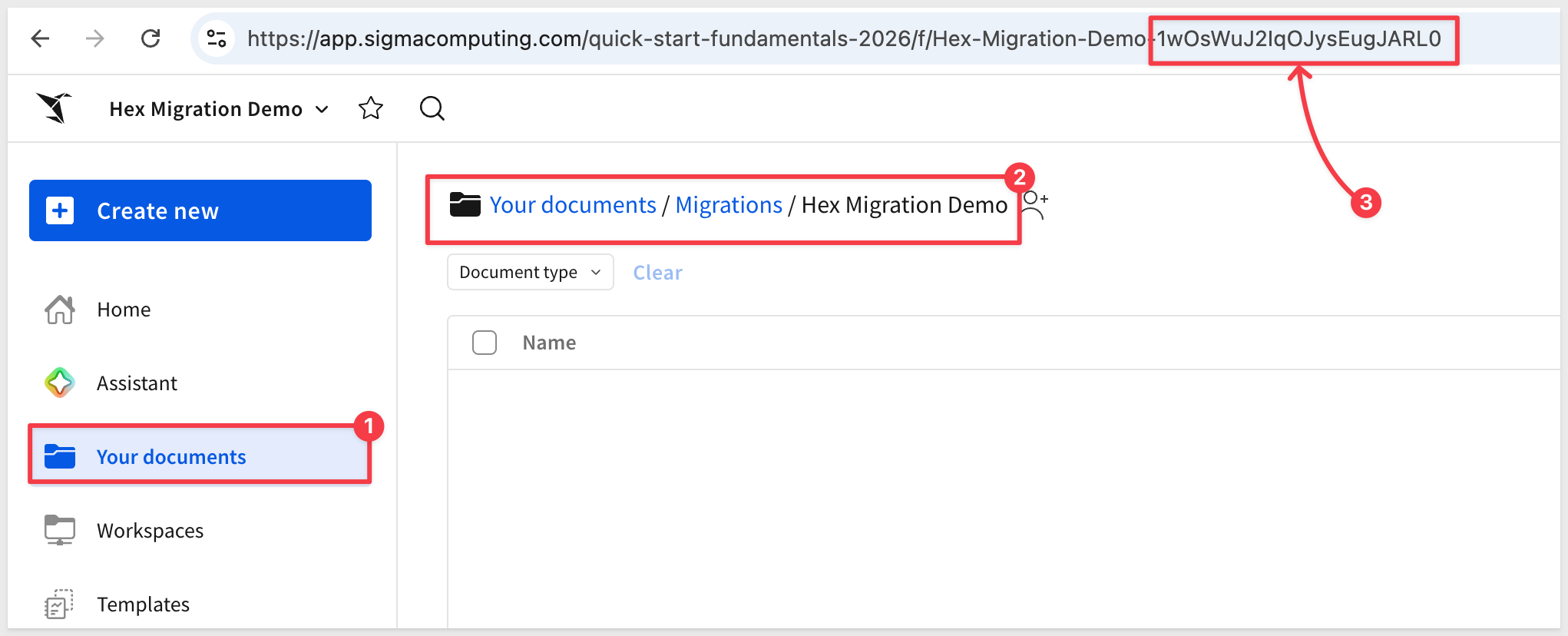

In Sigma, navigate to Home and create a new folder named Hex Migration Demo. Copy the folder's ID from the URL — you'll pass it to the skill in the next section.

The folder ID appears in the URL after /folder/:

https://app.sigmacomputing.com/{your-org}/folder/{your-folder-id}

Footer

With the sample project already on disk and the Sigma folder ready, return to the prompt from the end of Install and Configure the Skill and select option 3. Type something. If you closed that session, reopen Claude Code and invoke /hex-to-sigma again to get back to the same menu.

Adjust the kickoff prompt below — substituting your Sigma connection ID and folder ID:

Kickoff prompt

Run /hex-to-sigma on the following. Walk every phase in SKILL.md end-to-end and stop only if a hard gate fails.

Hex
- Project file: ~/quickstarts-public/hex-migration-skills/sample-project/Commerce Dashboard.yaml
- No Hex API credentials needed — discovery reads the file directly.

Warehouse — same on both sides
- The Hex project's SQL cell reads from Snowflake — database QUICKSTARTS, schema HEX_ECOMMERCE
- Sigma reads from Snowflake — same schema QUICKSTARTS.HEX_ECOMMERCE

Sigma
- SIGMA_API_TOKEN = mint from ~/.sigma-migration/env
- SIGMA_CONNECTION_ID: {your-snowflake-connection-id}
- SIGMA_FOLDER_ID: {your-folder-id}

Options
- Name prefix: Hex Demo
- Auto-approve mid-pipeline questions: yes
- Parity: data should match exactly since both sides read from the same warehouse. Report any deltas.

Don't declare GREEN until the parity gate passes.

The skill runs through six phases:

Discover → Reuse-check → Convert → Post the data model → Build the workbook → Verify parity.

Each phase emits a progress summary — watch for any WARN flags, which land on the gap list rather than stopping the run.

Footer

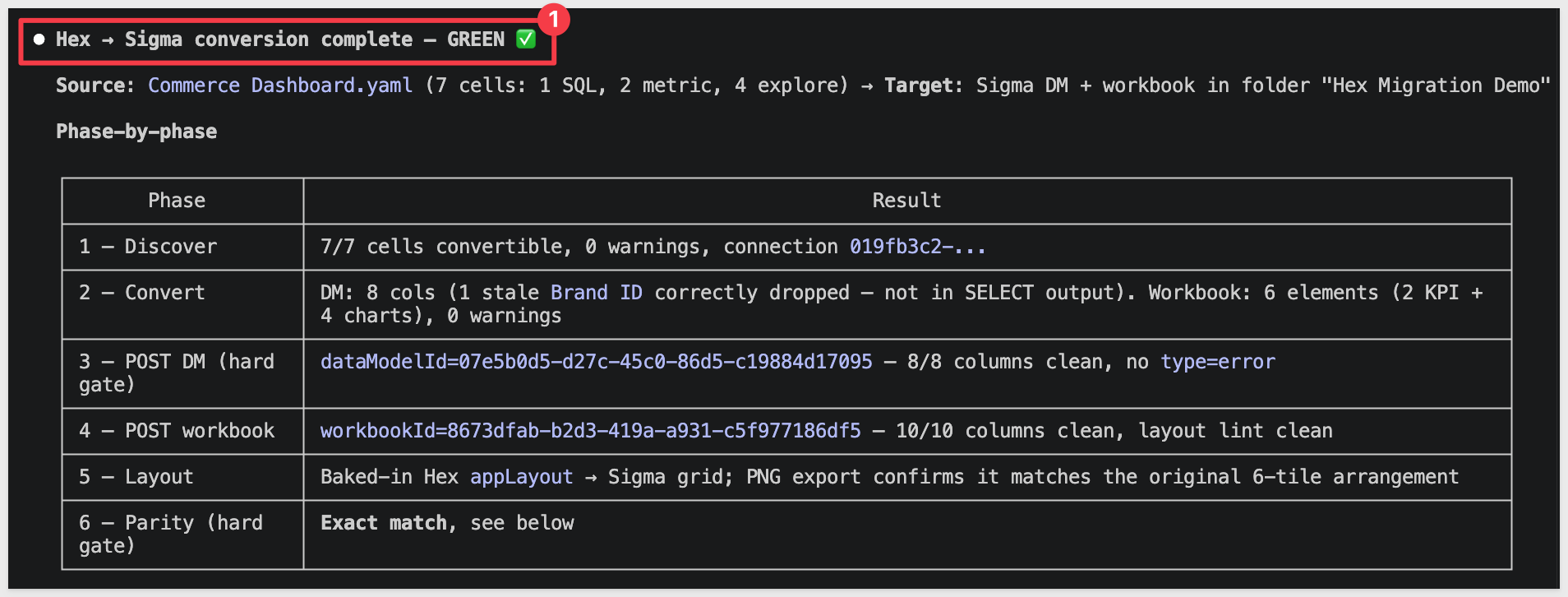

When the skill completes, it prints a summary of what it built: the data model and workbook it posted, the column-type guard result (every column should read clean, no error types), the layout lint result, and the parity check against the warehouse:

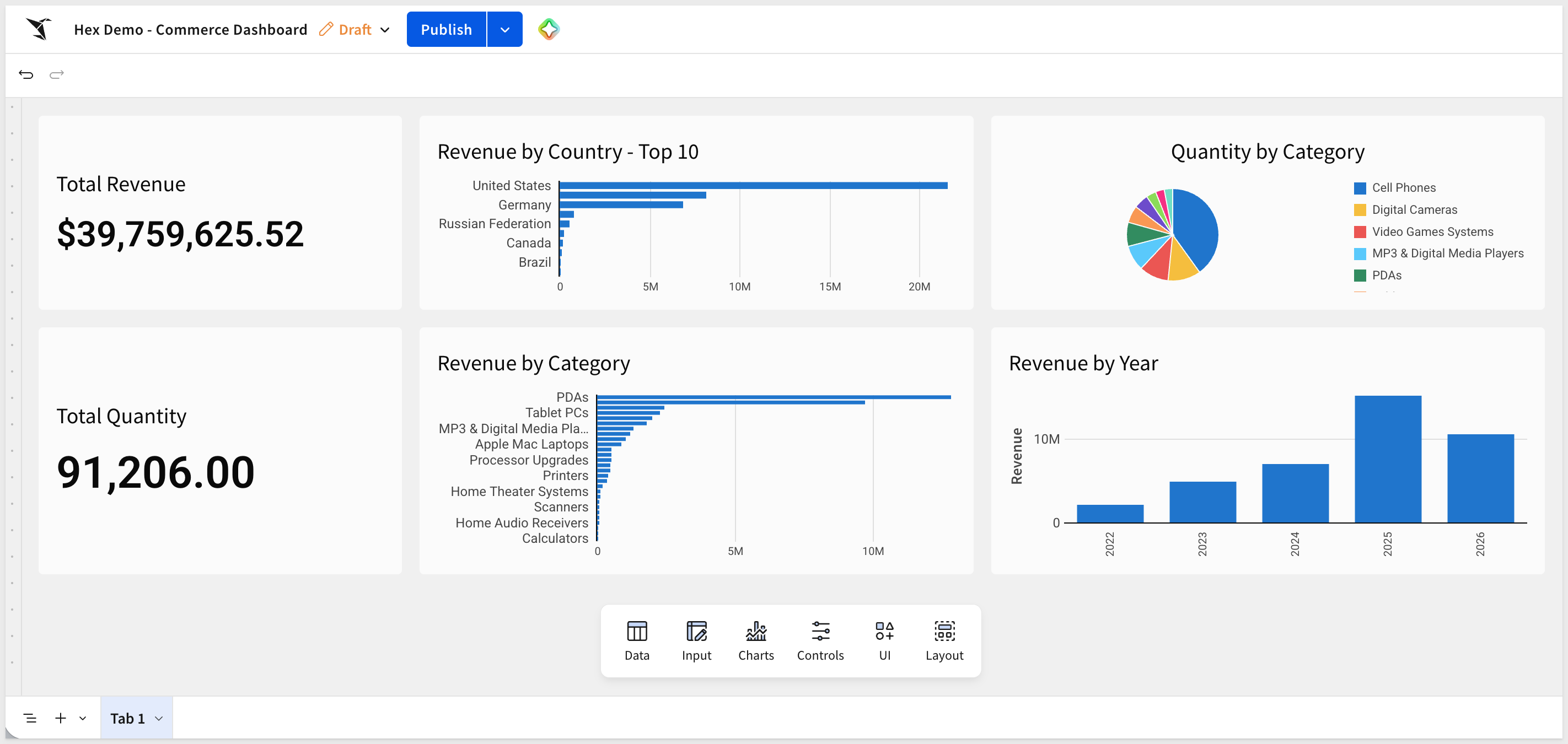

The Sigma workbook

Open the workbook in your Sigma folder and compare it against the source Hex app. The layout mirrors the source — two KPIs stacked on the left, three charts across the top row, two charts across the second row — and each visualization is backed by the translated formula, wired to the same data model:

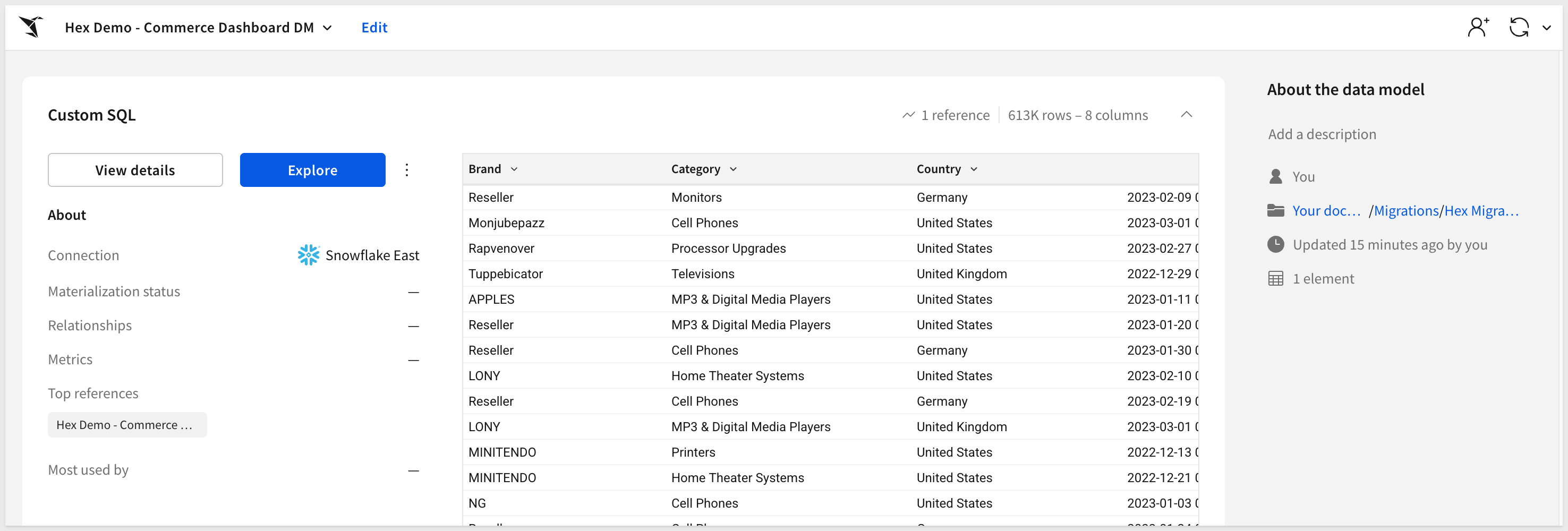

The Sigma data model

The skill also creates a data model in the same folder — a single native-SQL element carrying the Hex project's join query verbatim, with one column per output field.

The gap list

Anything the skill couldn't auto-translate — Python cells chief among them, along with unsupported chart types or multi-series charts — lands in the gap list with the source cell and the reason it was flagged, instead of being silently dropped or guessed at.

The sample Commerce Dashboard project doesn't exercise any of these, so its gap list comes back empty; a real-world Hex project with Python cells will show entries here to work through by hand.

Footer

Warehouse tables don't appear as expected

If your Sigma connection hasn't indexed the schema behind your Hex project's SQL cells yet, the data model POST can fail with a "Source not found: warehouse table..." error even though the table exists. Query the schema once from a Sigma workbook so the connection catalogs it (or sync it explicitly from Administration > Connections), then re-run.

Python-cell transformations that don't map to a Sigma formula

Hex projects that lean on Python cells for data transformation have no automatic Sigma equivalent — Python (CODE) cells are skipped and flagged on the gap list, never guessed at. If you want that logic to carry over, convert it to SQL in the source Hex project before exporting, or plan to rebuild it by hand in Sigma (a calculated column, a formula) after the migration lands.

A "dropped stale column(s)" warning during conversion

Hex's own cell preview cache can list a column that isn't actually in the SQL cell's SELECT output anymore — usually a join key referenced only in a JOIN ... ON clause, left over from an earlier edit to the query. The skill cross-checks against the SELECT clause and drops these automatically with a warning instead of posting a broken data-model column. This is expected behavior, not a bug — no action needed unless the warning names a column you actually expected to see in Sigma.

Sigma API token exchange fails with a 400

If minting a Sigma token fails with "code":"invalid_request" even with freshly created API credentials, check whether your Sigma org's client accepts client_credentials via an HTTP Basic Auth header — some orgs instead expect client_id/client_secret as body-form parameters (matching Sigma's own Postman guide). This isn't fully characterized yet as org-specific vs. universal; if you hit it, that mismatch is the first thing to check.

Footer

We converted a Hex project — SQL cells, KPIs, and charts — into a verified Sigma workbook without hand-translating a single formula, and without touching Hex's UI at all. The kickoff prompt you used here works for any exported .hex.yaml file — same pattern, different project.

The part of a Hex migration that usually eats the most time is untangling which SQL cell feeds which chart and reproducing the layout by eye. The skill reads all of that straight from the export — cells, chart config, app layout — and rebuilds it on the warehouse, surfacing anything it couldn't translate (Python cells, most often) on the gap list instead of guessing.

The parity gate is the real proof, not the column-type guard. Because Sigma and Hex both query the same warehouse tables, a clean parity check means the numbers actually match — not just that the formulas compile. Short of GREEN, the gap list tells you why.

When you're ready to move past a single project, hex-assessment is where estate-wide scoping starts — inventory the workspace before committing to a full migration.
