REST API Usage 02: Bookmarks

This QuickStart demonstrates how to extend an embedded Sigma workbook with bookmark functionality using the Sigma REST API.

Bookmarks let us capture the current state of a user's exploration—including filters, drill-downs, and interactions—and save it for later use. In this example, Build users can create bookmarks, and View users can select and apply saved bookmarks via a dropdown in the host application.

This approach enables more personalized, collaborative analytics experiences. It's especially useful for SaaS providers or internal teams who want to give users the ability to revisit saved views or share context across roles — without requiring access to the full Sigma interface.

REST API Usage 01: Getting Started

For more information on Sigma's product release strategy, see Sigma product releases

If something doesn't work as expected, here's how to contact Sigma support

Target Audience

Developers who want to use Sigma's REST API to programmatically control Sigma in an embedded context.

Prerequisites

Any modern browser will work.
Access to your Sigma environment.
Some familiarity with Sigma is assumed. Not all steps are shown, as the basics are assumed understood.
Microsoft VSCode or other suitable development tool.

Sigma Free Trial

Download Visual Studio Code

Footer

If you haven't already, open the project in VSCode and start the Express server in terminal from the embedding_qs_series_2_api_use_cases folder:

DEBUG=true npm start

The server is ready when it displays: Server listening at http://localhost:3000.

Browse to the landing page:

http://localhost:3000

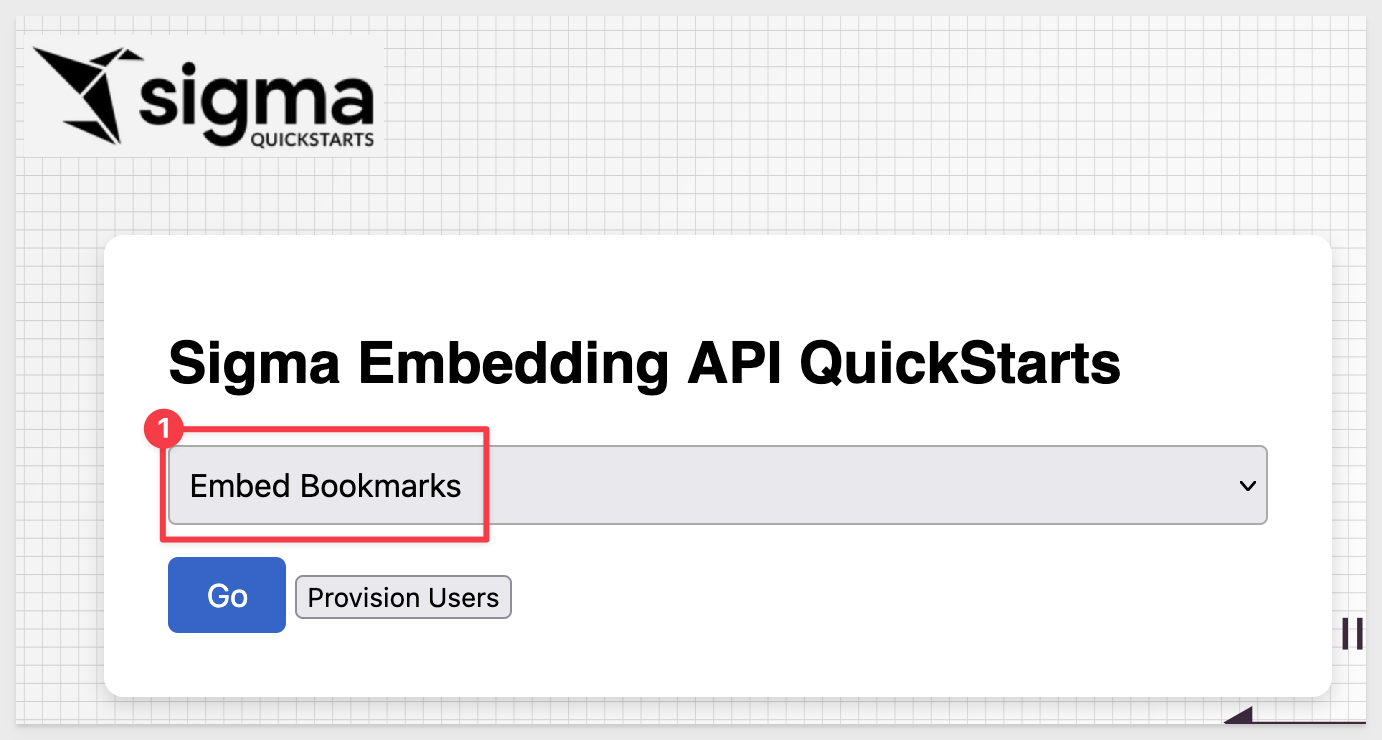

Select the Embed Bookmarks page and click Go:

Select the View user and the Embed_API_QuickStart workbook.

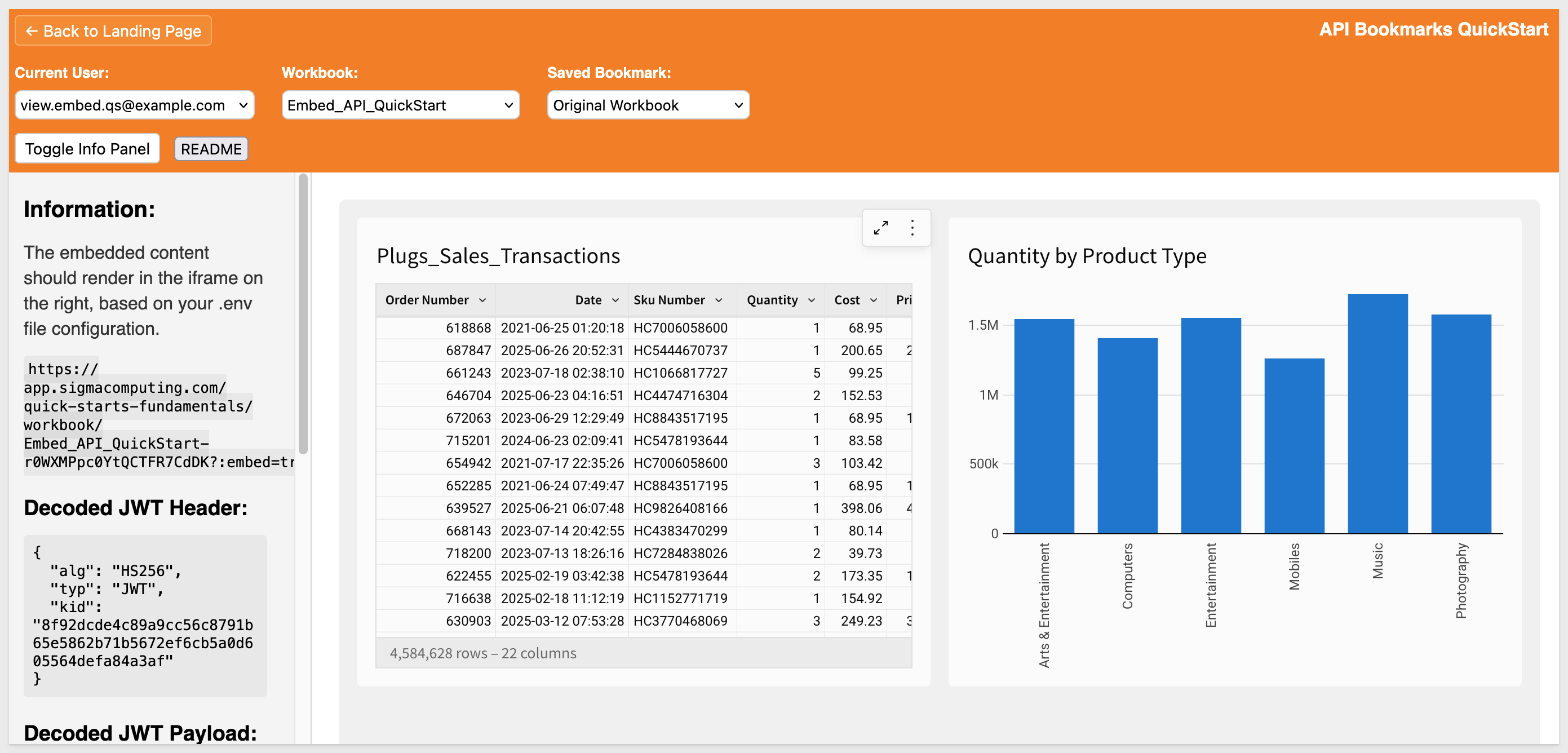

The embed loads but there are no bookmarks in the Saved Bookmark list yet. The View user has no way to create bookmarks or explore the data further as expected:

Create a bookmark

Let's say the View user has requested that the workbook only show data for mobile phones. With this embed configuration, the Build user can provide that by creating a bookmark.

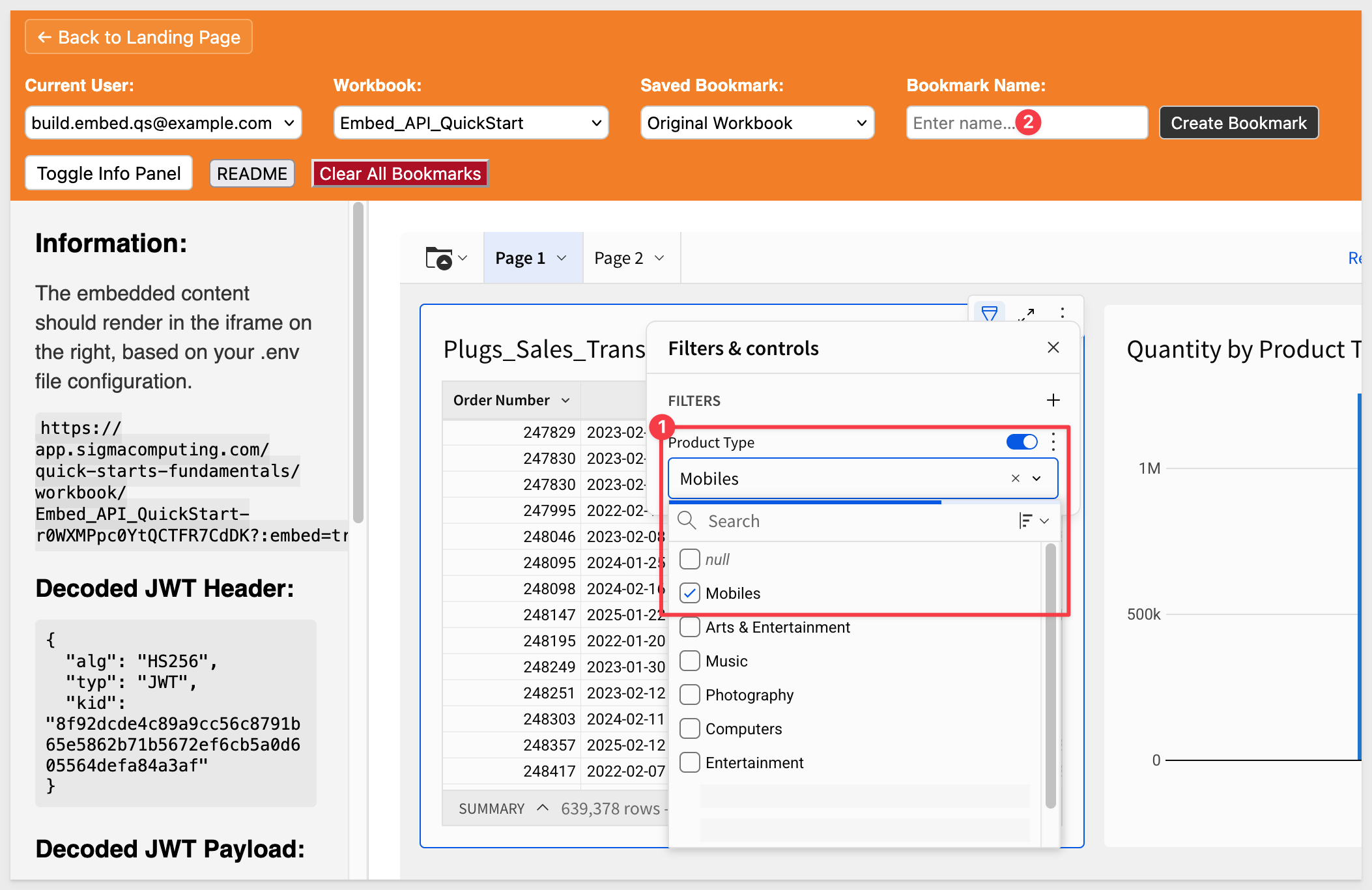

Switching to the Build user, we can set a filter on the table to display only rows with Product Types > Mobiles:

A few things happen when we start to interact with the table. In this case, we're selecting a column to filter on (Product Type) and then selecting a value (Mobiles).

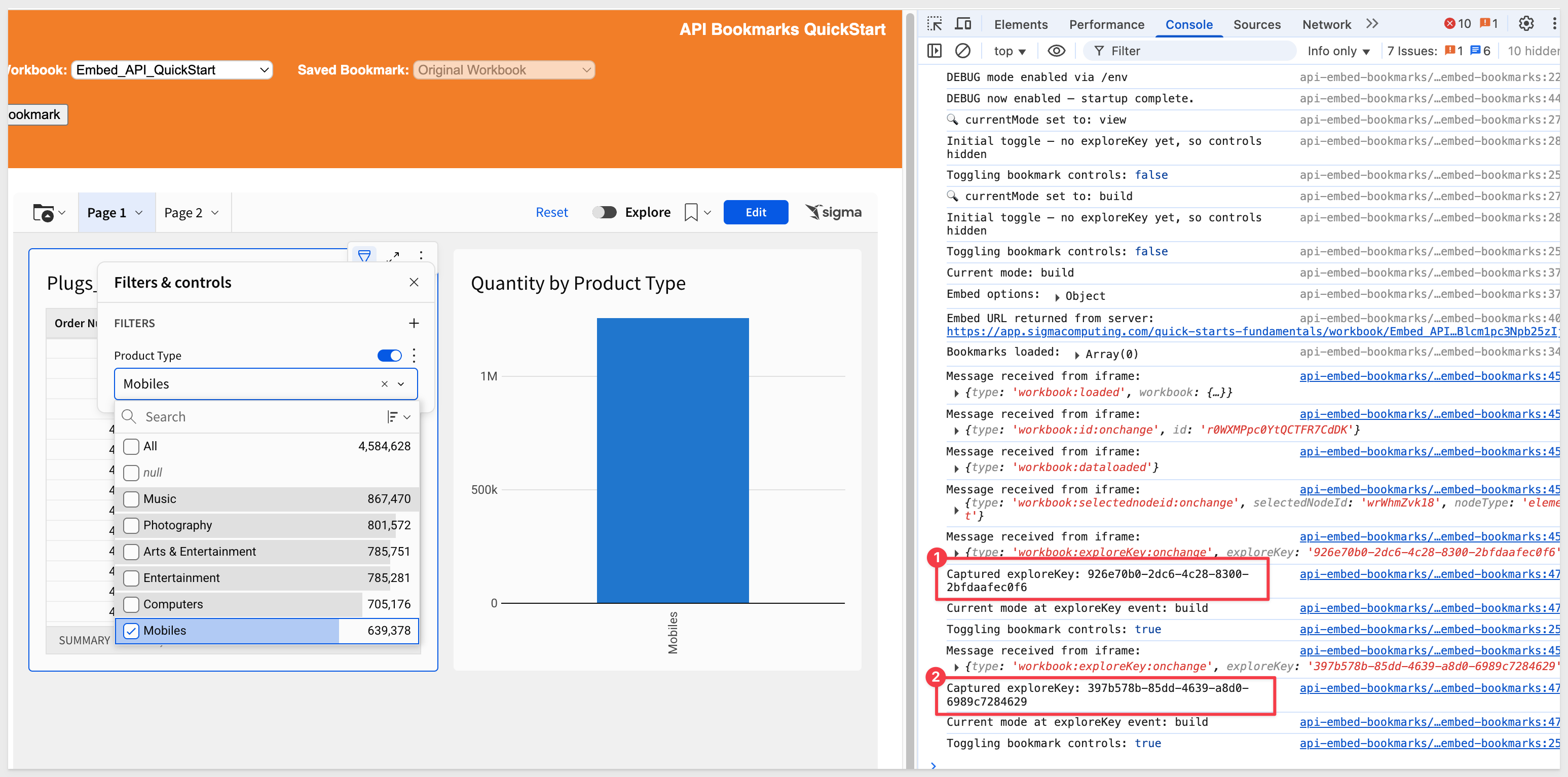

In the console log, we can see that each time a different exploreKey event was emitted from Sigma. This is an important observation, as we only want to create a bookmark on the most recent exploreKey, and this needs to be handled in the code:

In api-embed-bookmarks/index.html, we added an event listener to store the most recent exploreKey:

if (
  data.type === "exploreCreated" ||
  data.type === "workbook:exploreKey:onchange"
) {
  if (data.exploreKey) {
    latestExploreKey = data.exploreKey;
    if (DEBUG) {
      console.log("Captured exploreKey:", latestExploreKey);
      console.log("Current mode at exploreKey event:", currentMode);
    }
    toggleBookmarkControls(currentMode === "build");
  }
}

This ensures that the latest exploreKey is always stored in the global latestExploreKey variable.

Later, when the Build user clicks the Save Bookmark button, the value of latestExploreKey is passed into the API call.

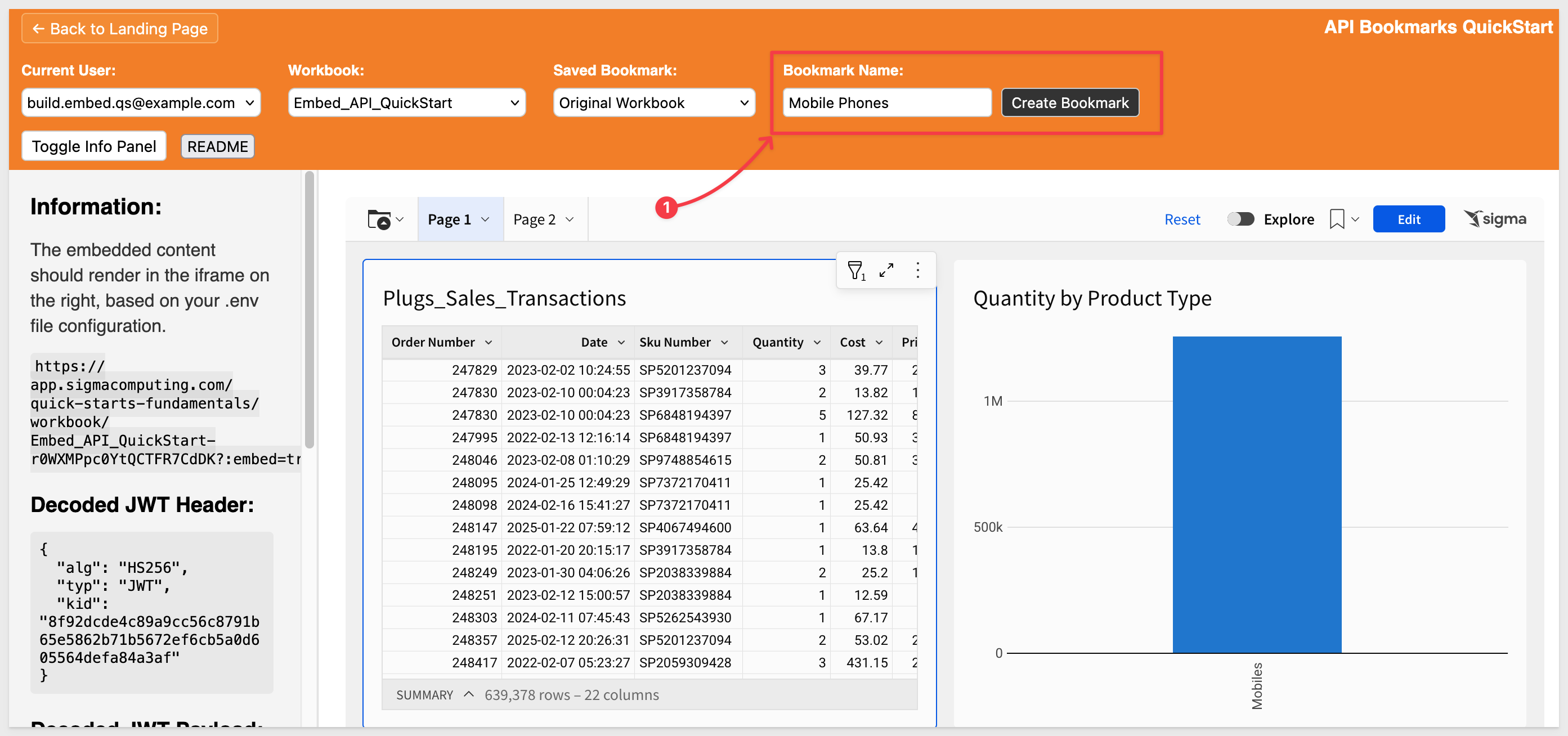

Once we have the table filtered, we can give the bookmark a name (Mobile Phones) and click Create Bookmark:

A popup will confirm the bookmark, Bookmark created successfully!.

Click Ok.

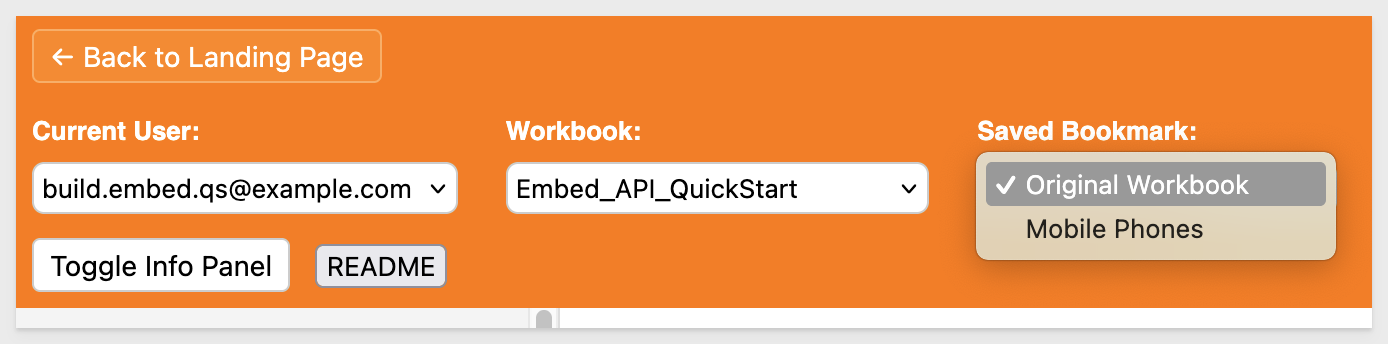

The Saved Bookmark list now contains the new entry:

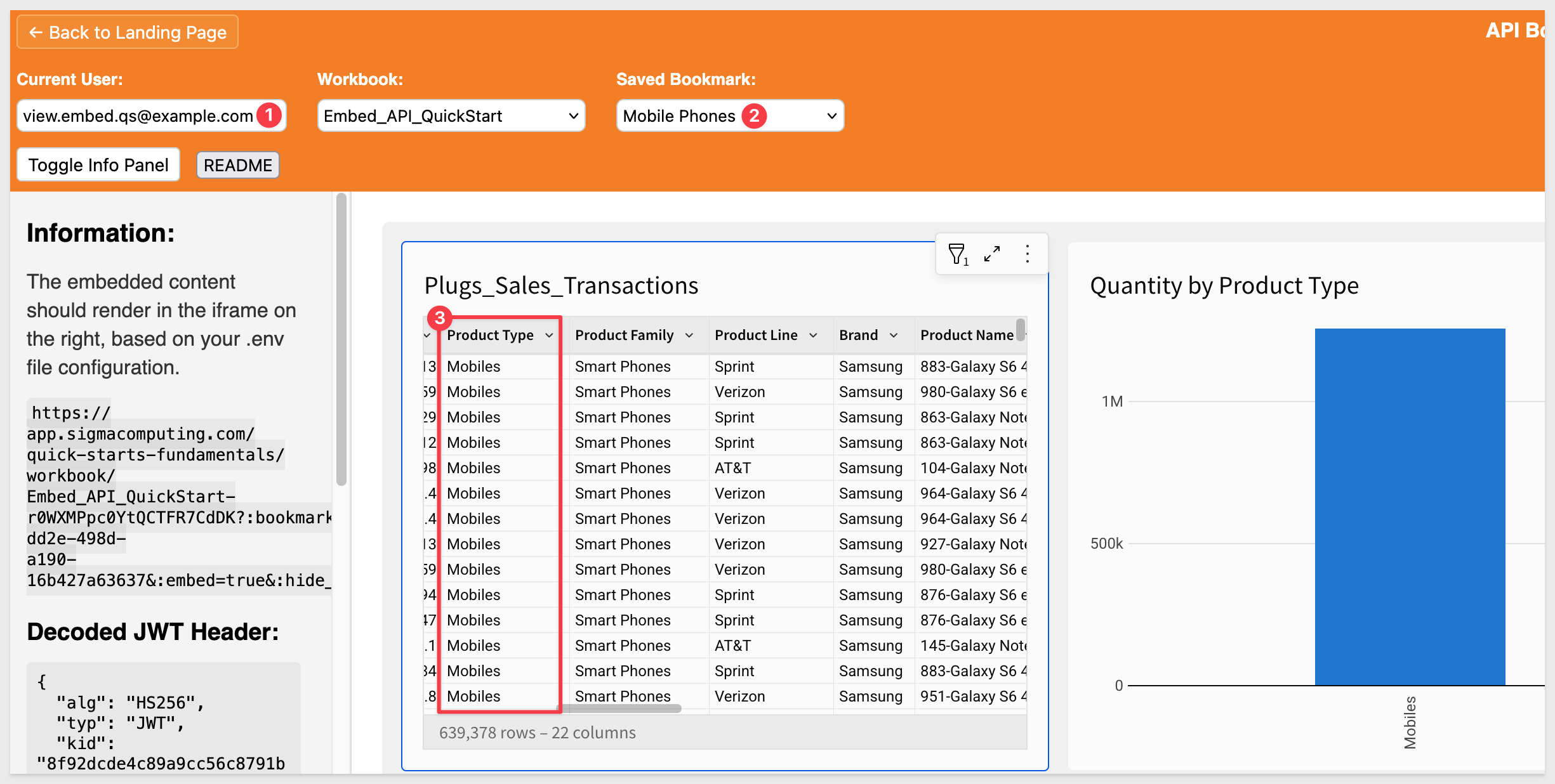

We can also select the Mobile Phones bookmark when using the View user:

View user

We have designed the project so that the View user can access saved workbooks but cannot alter them or create new explorations or bookmarks.

We do this by first disabling the workbook menus in the .env file when the View user is selected:

HIDE_FOLDER_NAVIGATION=false
HIDE_MENU=false
MENU_POSITION=none

In the index.html page we have a toggleBookmarkControls function that enforces:

For Build Users: currentMode === "build" returns true → bookmark controls shown
For View Users: currentMode === "build" returns false → bookmark controls hidden
UI Effects:
- Hides entire bookmark controls div (display: none)
- Disables create button (disabled = true)
- Clears bookmark name input

This ensures View Users cannot see or interact with bookmark creation controls, even if they somehow interact with the embedded content.

Footer

After creating several bookmarks for testing you may want to delete them when done. This can be done in Sigma's API Reference, but that is one at a time.

To automate this, we created a script under a page button.

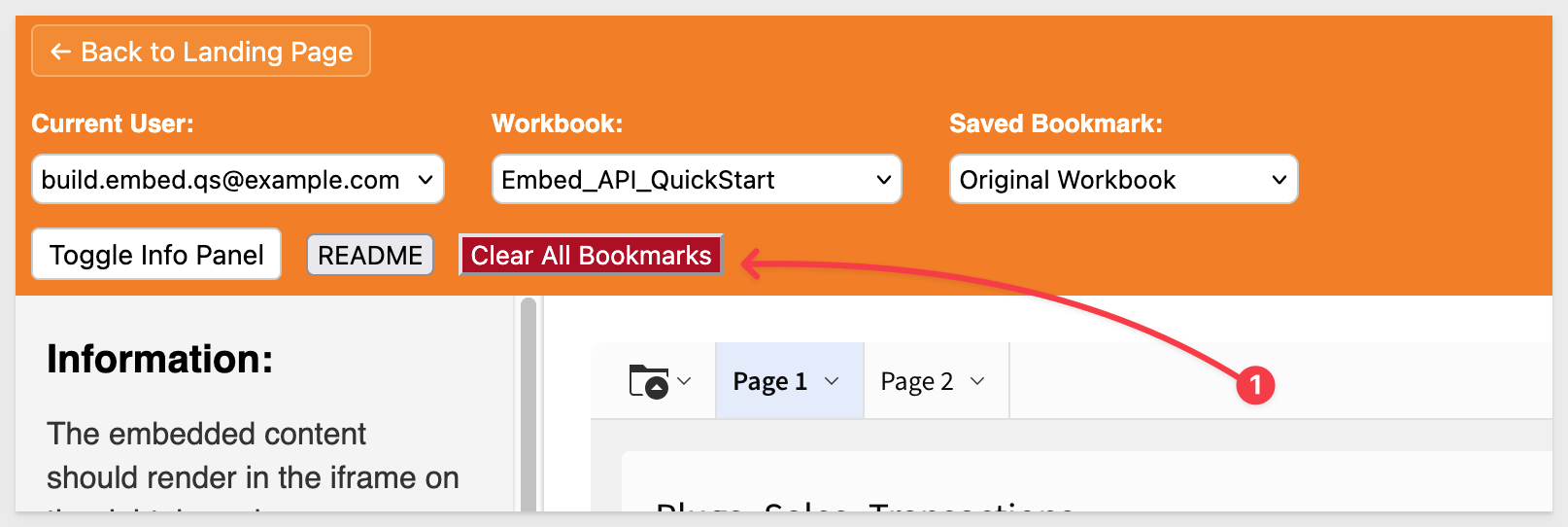

Select the Build user and a workbook to target.

Clear All Bookmarks calls the script for you. The fetch called is api\route\bookmarks\clear-all.

The console log will list the bookmarks that were deleted:

Fetching bookmarks from Sigma API: https://aws-api.sigmacomputing.com/v2/workbooks/0e51172a-a4c0-4954-8c8c-9d854dcf4434/bookmarks
Found 1 bookmarks in Sigma to delete
Deleted Sigma bookmark: Mobile Phones (879c3131-eee6-4263-8df1-4e1a4be7178a)
Clear all bookmarks completed - deleted 1 bookmarks

Footer

In this QuickStart, we demonstrated how to extend your Sigma embedding experience with bookmark creation and application. Specifically, we covered:

Detecting user-generated exploration states (exploreKey) from the embedded Sigma workbook.
Creating new bookmarks via the Sigma API using the current exploreKey.
Listing all existing bookmarks for a selected workbook.
Applying a saved bookmark using outbound postMessage events to update the embed in real time.
Restricting bookmark functionality to Build users only, while still allowing View users to apply saved bookmarks.
Bulk deletion of bookmarks for a selected workbook.

This QuickStart builds on the foundational setup from the previous one and introduces a practical use case for interactive, personalized embedding with the Sigma API.
