In this QuickStart, you'll learn how to integrate Snowflake Intelligence with Sigma, allowing users to interact with their AI agents and perform structured analytics in one unified interface.

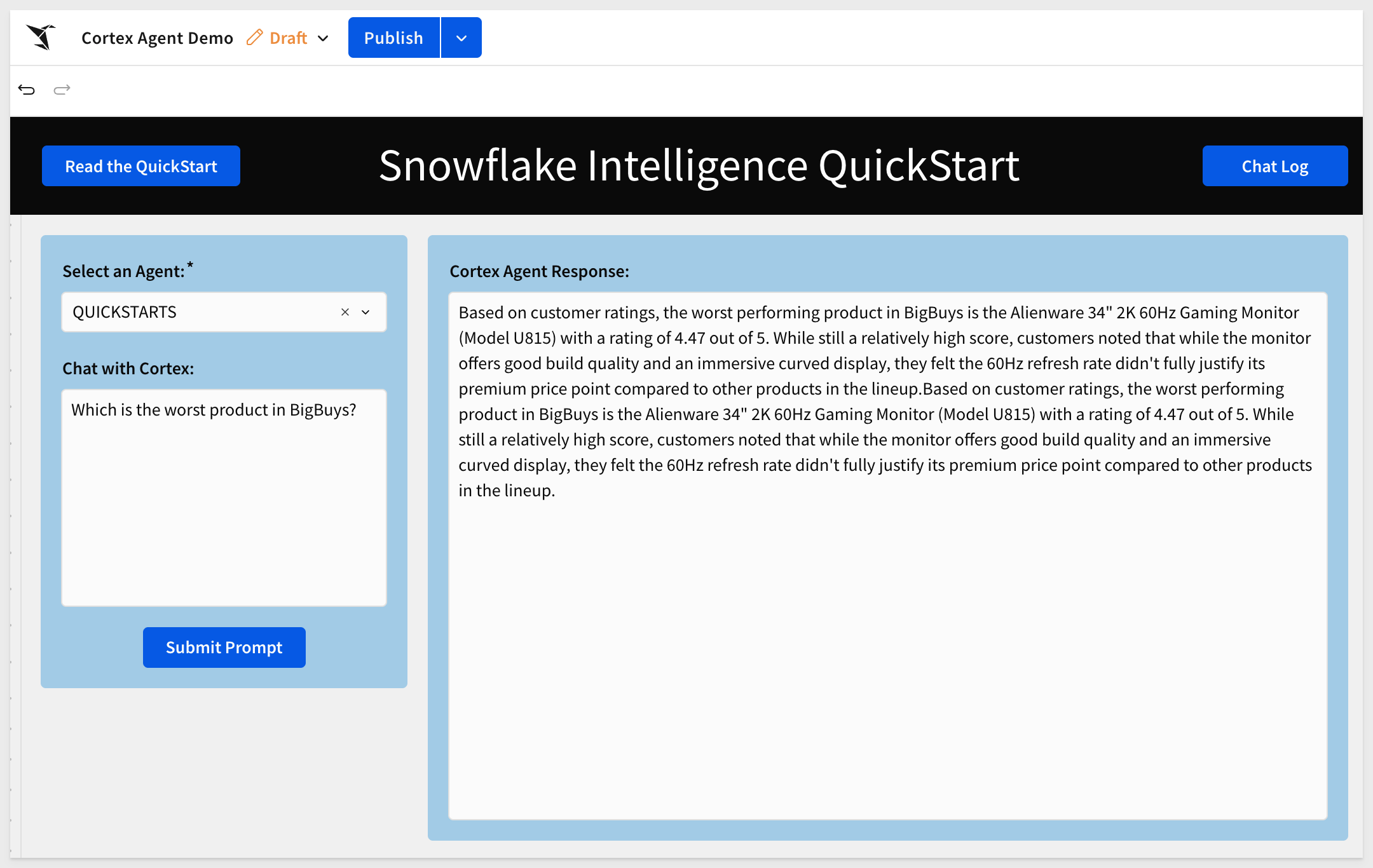

You'll build a Sigma workbook that lets users:

This is the first step in Sigma's planned native integration with Snowflake Intelligence—giving you early access to a powerful new AI-driven workflow.

For more information on Sigma's product release strategy, see Sigma product releases

If something doesn't work as expected, here's how to contact Sigma support

Target Audience

Any Sigma or Snowflake user interested in how Snowflake Intelligence and Sigma can make them more productive.

What You'll Learn

Prerequisites

Sigma Free Trial

Footer

Before we do anything, we need to make sure that a database, schema and at least one agent exists for Snowflake Intelligence.

Run the following command in a Snowflake worksheet:

USE ROLE ACCOUNTADMIN;
SHOW AGENTS IN SCHEMA SNOWFLAKE_INTELLIGENCE.AGENTS;

If the return is Object does not exist, or operation cannot be performed. then you will need to create the database, schema and agent.

For detailed instruction, see Set Up Snowflake Intelligence

For example, we ran:

USE ROLE ACCOUNTADMIN;

CREATE DATABASE IF NOT EXISTS snowflake_intelligence;
GRANT USAGE ON DATABASE snowflake_intelligence TO ROLE PUBLIC;

CREATE SCHEMA IF NOT EXISTS snowflake_intelligence.agents;
GRANT USAGE ON SCHEMA snowflake_intelligence.agents TO ROLE PUBLIC;

GRANT CREATE AGENT ON SCHEMA snowflake_intelligence.agents TO ROLE ACCOUNTADMIN;

Now running this script again works, but returns no results (we need to create an agent still):

USE ROLE ACCOUNTADMIN;
SHOW AGENTS IN SCHEMA SNOWFLAKE_INTELLIGENCE.AGENTS;

Create an agent

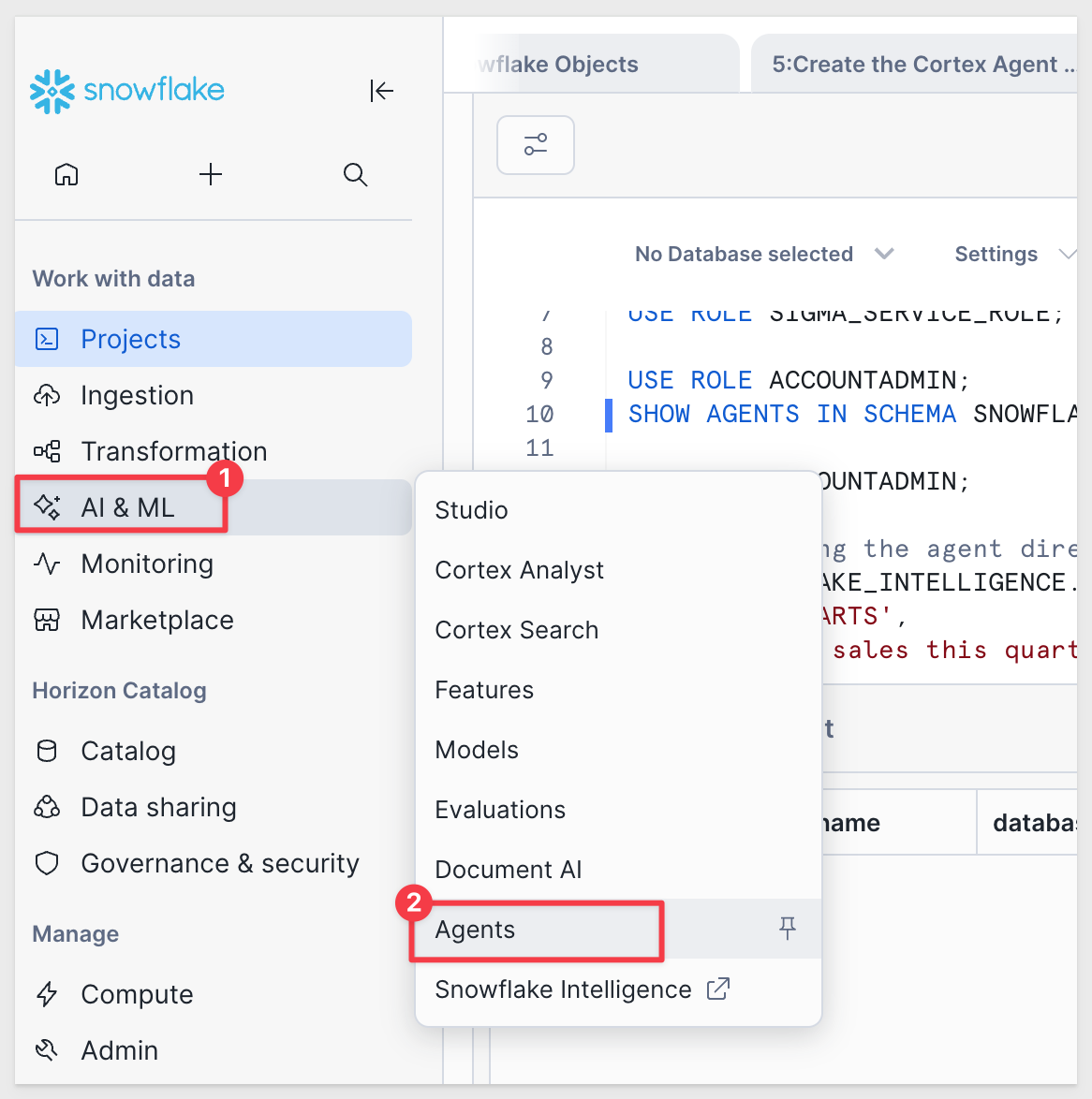

In Snowflake, open AI & ML and select Agents:

Click the Create agent button.

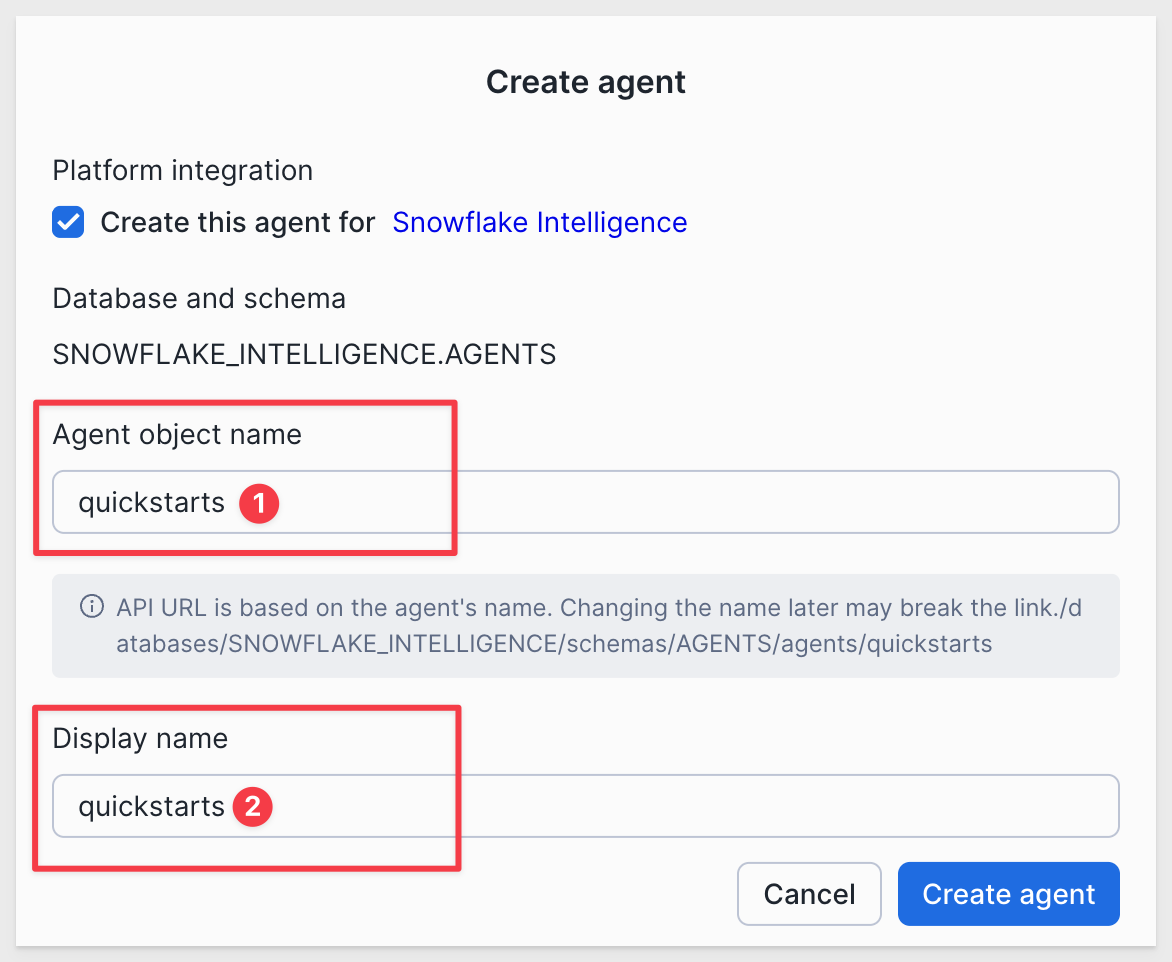

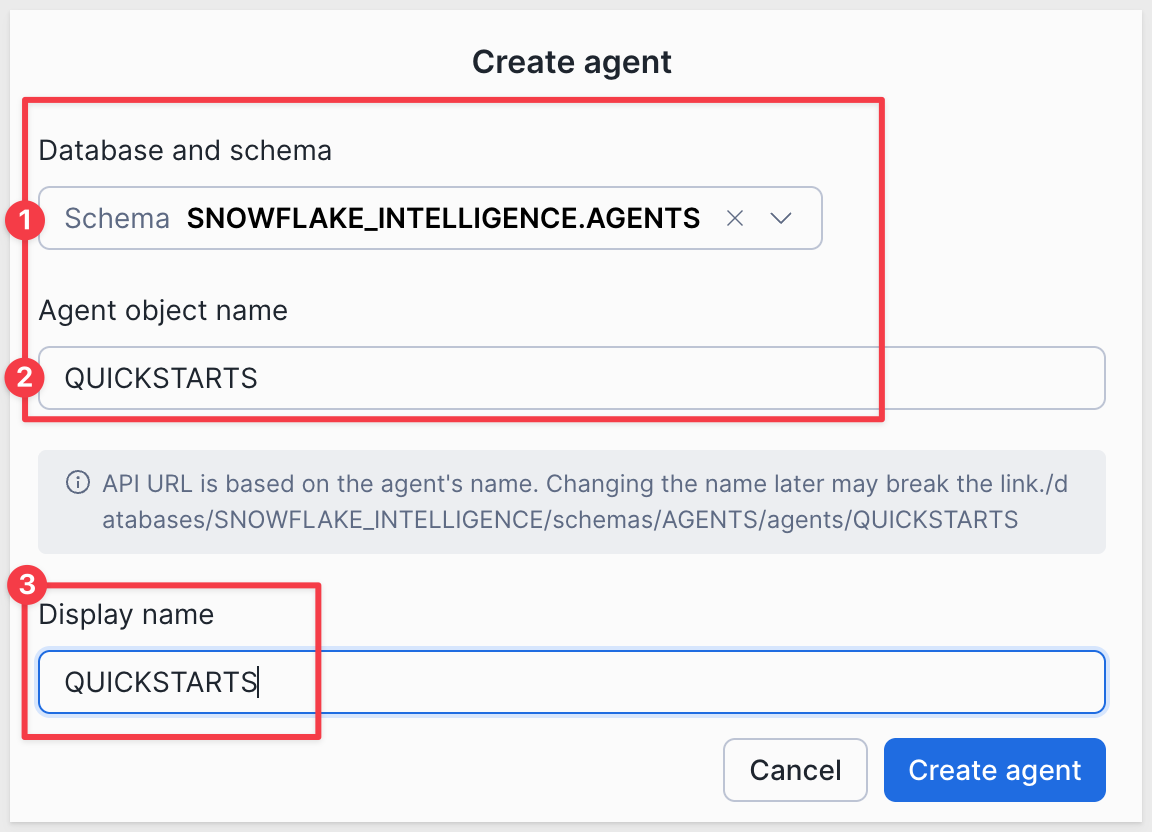

Set the name and display name to quickstarts and click Create agent:

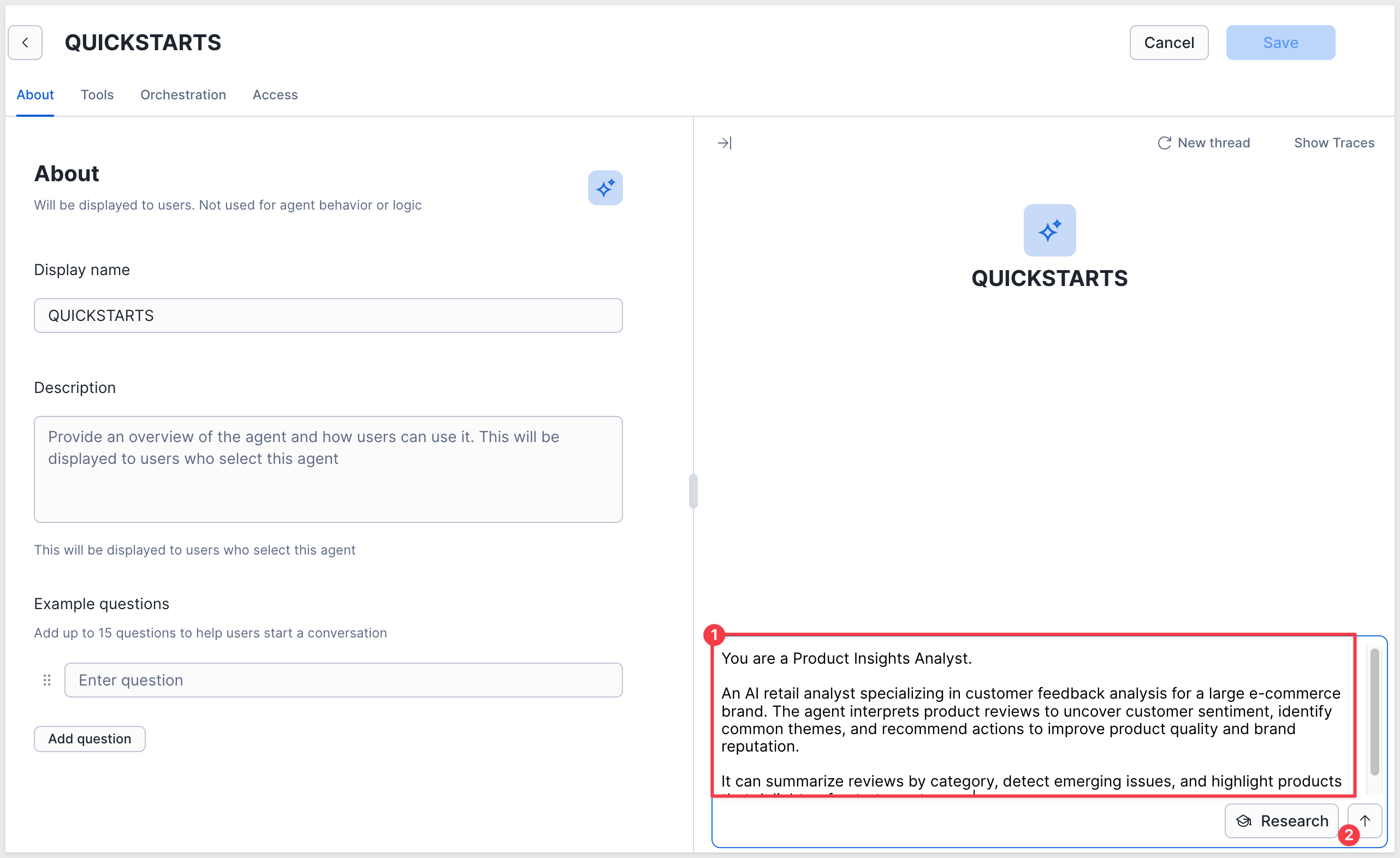

Once the agent is created, we can edit it and add a description to help tailor the responses to our sample retail dataset.

Set the Description to:

You are a Product Insights Analyst.

An AI retail analyst specializing in customer feedback analysis for a large e-commerce brand. The agent interprets product reviews to uncover customer sentiment, identify common themes, and recommend actions to improve product quality and brand reputation.

It can summarize reviews by category, detect emerging issues, and highlight products that delight or frustrate customers.

Click Save.

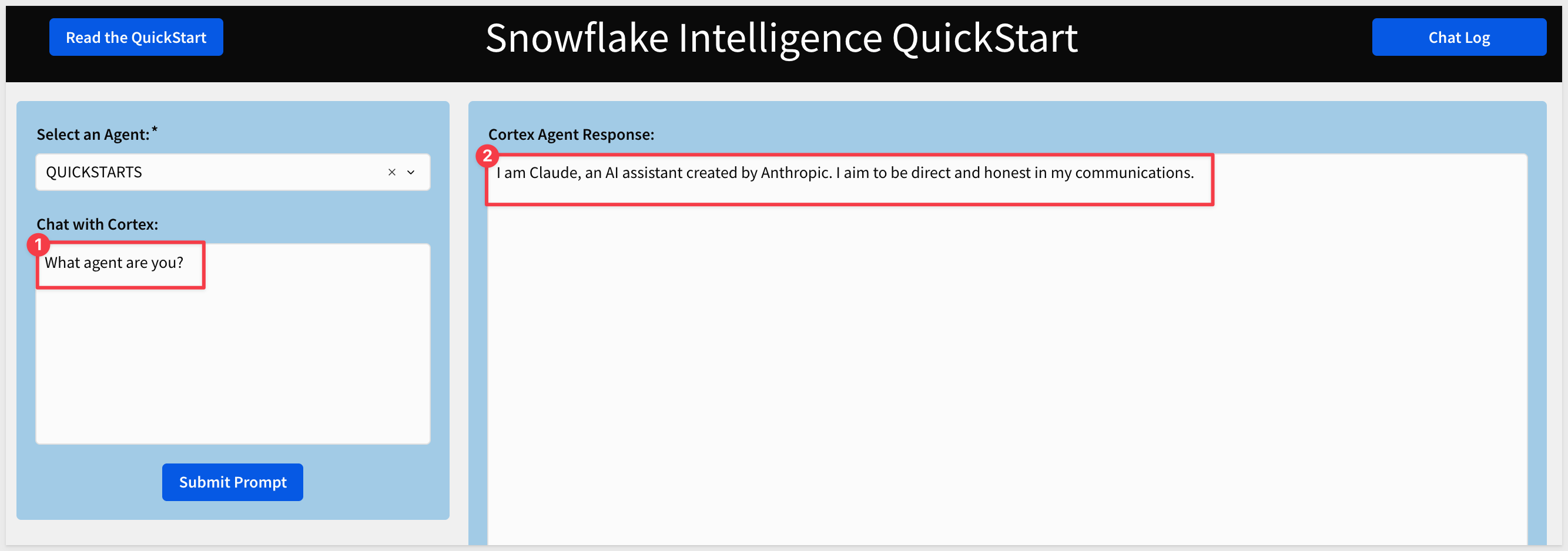

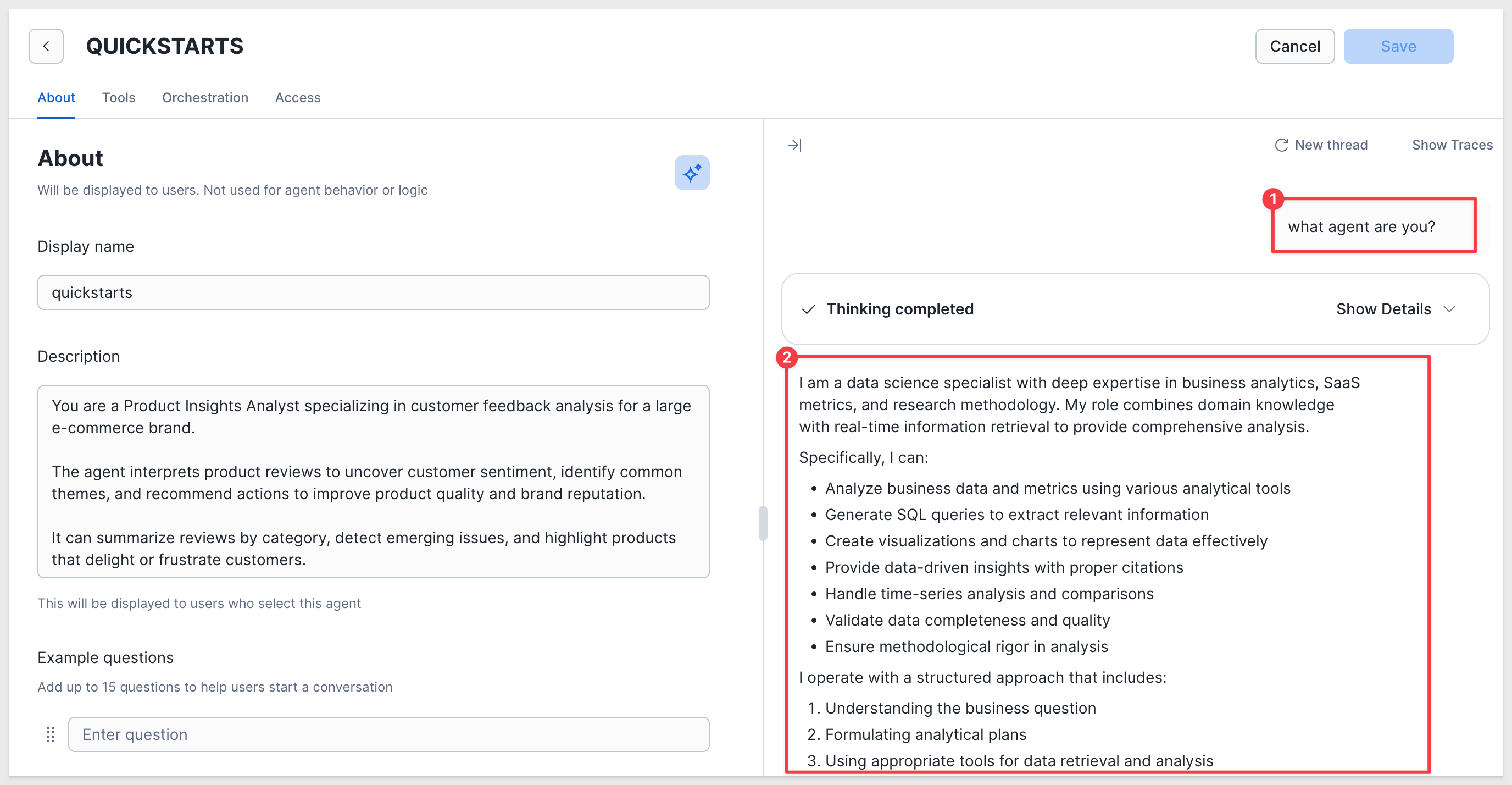

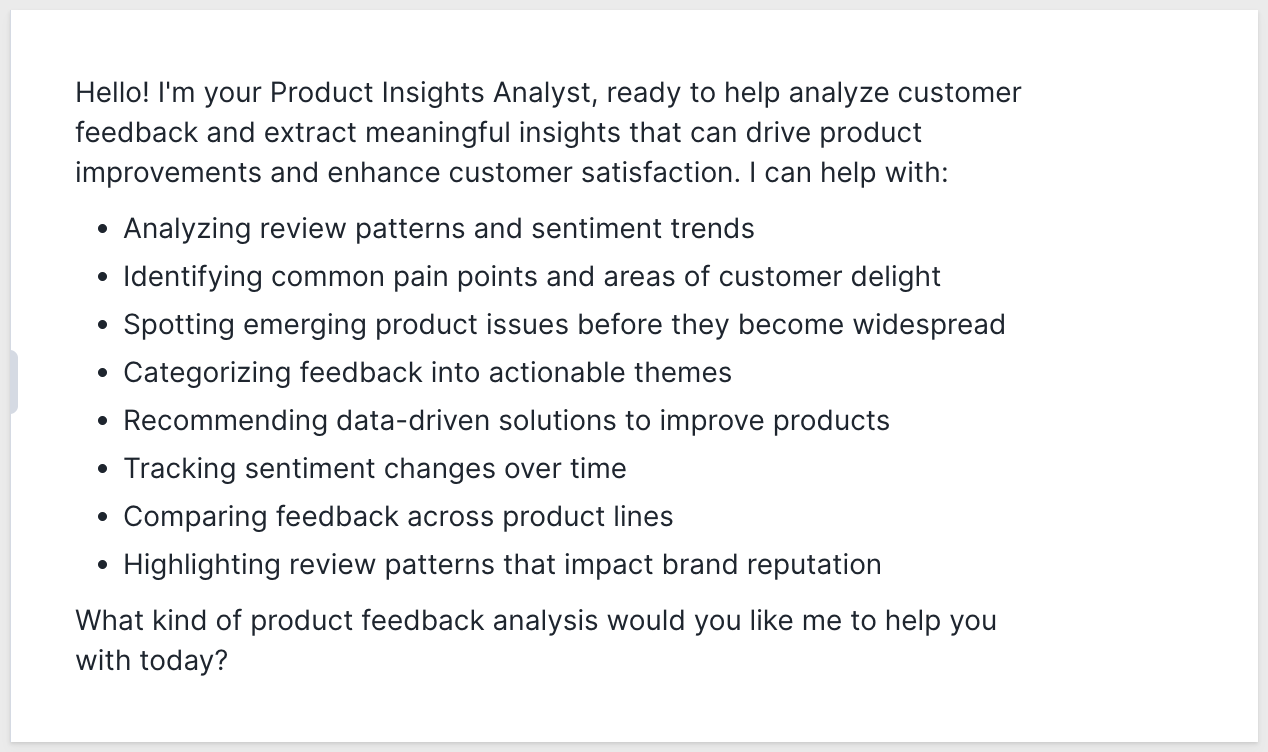

Now we can verify it works by asking a question like what agent are you?:

Now this script returns the quickstart agent:

SHOW AGENTS IN SCHEMA SNOWFLAKE_INTELLIGENCE.AGENTS;

Footer

This account isolates Sigma's access and keeps your Cortex integration secure and auditable.

Run the following command in Snowflake:

-- ------------------------------------------------------------
-- Bootstrap namespace + security for Sigma/Agents
-- Creates DB/Schema (if missing), service role, service user, and grants
-- ------------------------------------------------------------

-- Use a privileged role for account-level and global grants
USE ROLE ACCOUNTADMIN;

-- Create the database + schema if they don't exist yet
CREATE DATABASE IF NOT EXISTS QUICKSTARTS
  COMMENT = 'QS sandboxes and examples';
CREATE SCHEMA IF NOT EXISTS QUICKSTARTS.AGENTS
  COMMENT = 'Agent QuickStart assets (procs, logs, etc.)';

-- Create a dedicated service role for Sigma
CREATE ROLE IF NOT EXISTS SIGMA_SERVICE_ROLE;

-- Grant role basic access to the namespace where the proc will live
GRANT USAGE ON DATABASE QUICKSTARTS TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON SCHEMA QUICKSTARTS.AGENTS TO ROLE SIGMA_SERVICE_ROLE;

-- Allow the role to create/execute procs in this schema (proc will be added later)
GRANT CREATE PROCEDURE ON SCHEMA QUICKSTARTS.AGENTS TO ROLE SIGMA_SERVICE_ROLE;
-- we plan to log chats to a table in this schema, pre-grant table privileges:
GRANT CREATE TABLE ON SCHEMA QUICKSTARTS.AGENTS TO ROLE SIGMA_SERVICE_ROLE;

-- Create the service user that Sigma will use to connect
CREATE USER IF NOT EXISTS SIGMA_SERVICE_USER
  TYPE = SERVICE
  LOGIN_NAME = SIGMA_SERVICE_USER
  DISPLAY_NAME = 'Sigma Service User'
  DEFAULT_ROLE = SIGMA_SERVICE_ROLE
  DEFAULT_WAREHOUSE = COMPUTE_WH;

-- Tie the role and warehouse to the user/role
GRANT ROLE SIGMA_SERVICE_ROLE TO USER SIGMA_SERVICE_USER;
GRANT USAGE ON WAREHOUSE COMPUTE_WH TO ROLE SIGMA_SERVICE_ROLE;

After selecting Run All the script will run to success:

Now would be a good time to configure the connection to Snowflake in Sigma. The connection will require key-pair authentication and write-back enabled.

For more information, see: Snowflake Key-pair Authorization and Set up write access

Now that we have a service account, we need to create a Programmatic Access Token ("PAT) for the service user.

Before Snowflake can call the Cortex API on behalf of your Sigma service user, you'll need to create a Programmatic Access Token (PAT).

This token authorizes Snowflake to make REST API calls (to the Cortex Agent endpoint) on behalf of that user—without requiring interactive login.

To create a PAT, we also need a service account user and role.

Service users must have a network policy restricting the IPs allowed to use the token.

Create a network policy

For this QuickStart demonstration, we will relax that rule by applying an authentication policy that does not enforce a network policy for PAT creation, but expires the PAT after one day.

Run the following command in Snowflake:

USE ROLE ACCOUNTADMIN;

-- Demo-only network policy (allows all IPv4)
CREATE OR REPLACE NETWORK POLICY quickstarts
  ALLOWED_IP_LIST = ('0.0.0.0/0')
  COMMENT = 'Demo-only: permits PAT use from any IPv4 address';

-- Attach the policy to the service user
ALTER USER SIGMA_SERVICE_USER SET NETWORK_POLICY = quickstarts;

-- Create a short-lived PAT (1-day expiry)
ALTER USER SIGMA_SERVICE_USER
ADD PROGRAMMATIC ACCESS TOKEN SIGMA_CORTEX_QUICKSTARTS_PAT
  ROLE_RESTRICTION = 'SIGMA_SERVICE_ROLE'
  DAYS_TO_EXPIRY = 1
  COMMENT = 'Token for Sigma–Cortex QuickStart demo (expires in 1 day)';

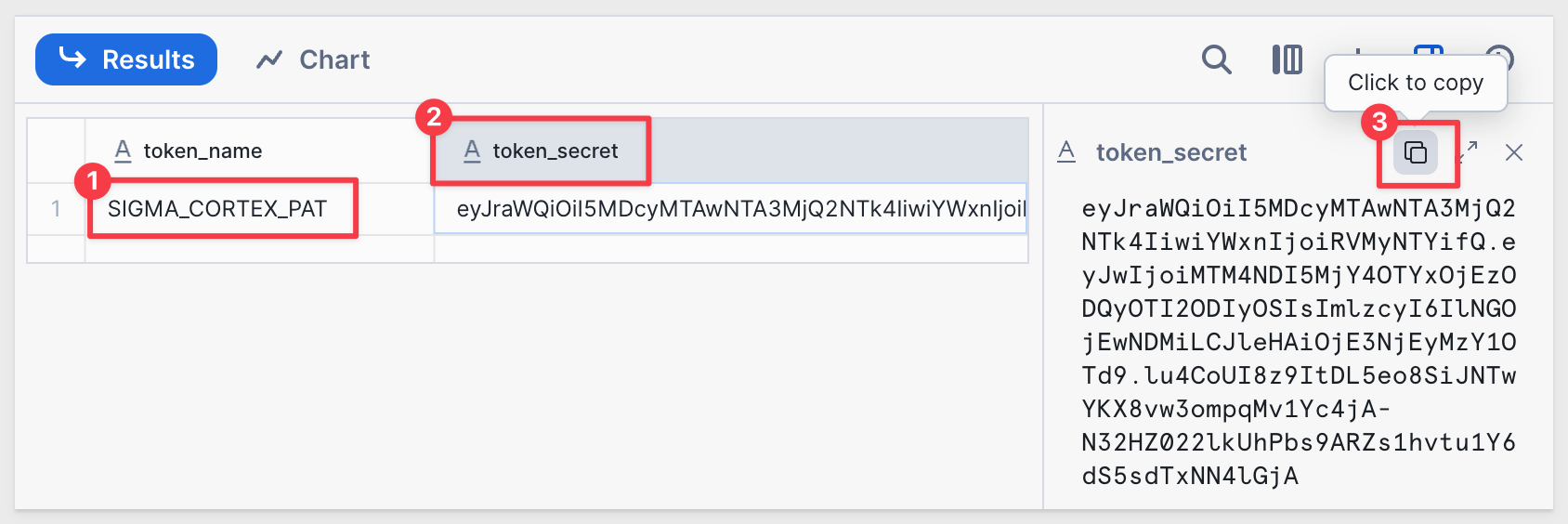

Once the script is run, copy the token secret to a text file as we will use it next:

Generate the PAT

Run the following command in Snowflake:

USE ROLE ACCOUNTADMIN;

ALTER USER SIGMA_SERVICE_USER
ADD PROGRAMMATIC ACCESS TOKEN SIGMA_CORTEX_PAT
  ROLE_RESTRICTION = SIGMA_SERVICE_ROLE
  DAYS_TO_EXPIRY = 30
  COMMENT = 'Token for Sigma–Cortex integration';

Footer

With your Programmatic Access Token (PAT) created, the next step is to let Snowflake securely call the Cortex API using that token. We'll:

Run the following command in Snowflake, replacing <paste_your_token_secret_here> and <your_account_identifier> and with your values:

-- ------------------------------------------------------------
-- Setup for Sigma + Snowflake Snowflake Intelligence Integration (Account Objects)
-- ------------------------------------------------------------
-- This script:
-- 1) Uses ACCOUNTADMIN for account-level objects
-- 2) Creates a SECRET holding your already-created PAT (token_secret)
-- 3) Creates a NETWORK RULE allowing egress to your Snowflake API host
-- 4) Creates an EXTERNAL ACCESS INTEGRATION binding the rule + secret
-- 5) Switches context to QUICKSTARTS.CORTEX_QS (proc will be created later)
-- ------------------------------------------------------------

-- Use a role with privileges to create account-level objects
USE ROLE ACCOUNTADMIN;

-- Switch to the db/schema
USE DATABASE QUICKSTARTS;
USE SCHEMA AGENTS;

-- Replace with your real host from Snowsight
-- Replace <your_account_identifier> with your org/acc locator, e.g. xy12345.us-east-1
SET ACCOUNT_HOST = '<your_account_identifier>.snowflakecomputing.com';

-- (1) Store your existing PAT (paste the token_secret from Step 1)
CREATE OR REPLACE SECRET SIGMA_CORTEX_QUICKSTARTS_PAT
  TYPE = GENERIC_STRING
  SECRET_STRING = '<paste_your_token_secret_here>';

-- (2) Allow outbound HTTPS to your account's Snowflake Intelligence API host
CREATE OR REPLACE NETWORK RULE SNOWFLAKE_API_EGRESS_NETWORK_RULE
  MODE = EGRESS
  TYPE = HOST_PORT
  VALUE_LIST = ($ACCOUNT_HOST);

-- (3) Bind the secret + network rule into an external access integration
CREATE OR REPLACE EXTERNAL ACCESS INTEGRATION CORTEX_AGENT_EXTERNAL_ACCESS_INTEGRATION
  ALLOWED_NETWORK_RULES = (SNOWFLAKE_API_EGRESS_NETWORK_RULE)
  ALLOWED_AUTHENTICATION_SECRETS = (SIGMA_CORTEX_QUICKSTARTS_PAT)
  ENABLED = TRUE;

After running, Snowflake will return Integration CORTEX_AGENT_EXTERNAL_ACCESS_INTEGRATION successfully created..

Footer

Next we create a stored procedure that when called from Sigma, invokes the Snowflake Intelligence Agent via Snowflake's REST API.

It takes two arguments, an agent name and a user message, and returns the agent's text response.

Run the following command in Snowflake, replacing the values for with your Snowflake account identifier:

-- Create the API caller procedure
CREATE OR REPLACE PROCEDURE QUICKSTARTS.AGENTS.CALL_CORTEX_AGENT_API(
  CORTEX_AGENT VARCHAR,
  USER_MESSAGE VARCHAR
)
RETURNS VARCHAR
LANGUAGE PYTHON
RUNTIME_VERSION = '3.9'
PACKAGES = ('requests','snowflake-snowpark-python')
HANDLER = 'call_agent_api'
EXTERNAL_ACCESS_INTEGRATIONS = (CORTEX_AGENT_EXTERNAL_ACCESS_INTEGRATION)
SECRETS = ('SIGMA_CORTEX_QUICKSTARTS_PAT' = SIGMA_CORTEX_QUICKSTARTS_PAT)
EXECUTE AS OWNER
AS
$$
import _snowflake, requests, json

def call_agent_api(session, cortex_agent, user_message):
    try:
        ALLOWLIST = {"QUICKSTARTS": []}

        if cortex_agent not in ALLOWLIST:
            return f"Invalid agent '{cortex_agent}'. Valid options: {', '.join(sorted(ALLOWLIST.keys()))}"

        account_host = "<your_account_identifier>.snowflakecomputing.com"
        url = f"https://{account_host}/api/v2/databases/snowflake_intelligence/schemas/agents/agents/{cortex_agent}:run"

        token = _snowflake.get_generic_secret_string('SIGMA_CORTEX_QUICKSTARTS_PAT')
        headers = {
            "Content-Type": "application/json",
            "Accept": "text/event-stream",
            "Authorization": f"Bearer {token}",
            "X-Snowflake-Authorization-Token-Type": "PROGRAMMATIC_ACCESS_TOKEN",
            "X-Snowflake-Role": "SIGMA_SERVICE_ROLE",
        }

        payload = {
            "messages": [
                {"role": "user", "content": [{"type": "text", "text": user_message}]}
            ],
            "tool_choice": {"type": "auto"}
        }

        text_chunks, current_event = [], None

        with requests.post(url, json=payload, headers=headers, stream=True, timeout=60) as r:
            r.raise_for_status()
            for raw in r.iter_lines(decode_unicode=True):
                if not raw:
                    continue
                line = raw.strip()

                if line.startswith("event: "):
                    current_event = line[7:]
                elif line.startswith("data: "):
                    data_str = line[6:]
                    if current_event in ("response.text", "response.text.delta"):
                        try:
                            t = json.loads(data_str).get("text")
                            if isinstance(t, str):
                                text_chunks.append(t)
                        except Exception:
                            pass
                    elif current_event == "response.error":
                        try:
                            msg = json.loads(data_str).get("message") or data_str
                            return f"Agent error: {msg}"
                        except Exception:
                            return f"Agent error: {data_str}"
                    elif current_event == "response.completed":
                        break

        if text_chunks:
            return "".join(text_chunks)

        # Fallback: try non-streaming
        r2 = requests.post(url, json=payload, headers={**headers, "Accept":"application/json"}, timeout=60)
        r2.raise_for_status()
        try:
            body = r2.json()
            for k in ("output_text","text","message","content"):
                if isinstance(body.get(k), str) and body[k]:
                    return body[k]
        except Exception:
            pass

        return r2.text or "No text content returned by agent."

    except requests.exceptions.RequestException as e:
        return f"HTTP error: {e}"
    except Exception as e:
        return f"Error: {e}"
$$;

Grants:

GRANT USAGE ON PROCEDURE QUICKSTARTS.AGENTS.CALL_CORTEX_AGENT_API(VARCHAR, VARCHAR)
  TO ROLE SIGMA_SERVICE_ROLE;

-- Grant visibility & execute rights to Sigma's role
GRANT USAGE ON DATABASE QUICKSTARTS TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON SCHEMA QUICKSTARTS.AGENTS TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON PROCEDURE QUICKSTARTS.AGENTS.CALL_CORTEX_AGENT_API(VARCHAR, VARCHAR)
  TO ROLE SIGMA_SERVICE_ROLE;
GRANT DATABASE ROLE snowflake.cortex_user TO ROLE SIGMA_SERVICE_ROLE;

-- Ensure the PAT's role can see/execute agents
GRANT USAGE ON DATABASE SNOWFLAKE_INTELLIGENCE TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON SCHEMA  SNOWFLAKE_INTELLIGENCE.AGENTS TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON AGENT SNOWFLAKE_INTELLIGENCE.AGENTS.QUICKSTARTS TO ROLE SIGMA_SERVICE_ROLE;

Quick test

We can check that everything is configured correctly in Snowflake by calling the agent:

CALL QUICKSTARTS.AGENTS.CALL_CORTEX_AGENT_API('QUICKSTARTS', 'What agent are you?');

The response will be something like this:

I am an AI assistant created by Anthropic. I aim to be direct and honest in my interactions. I engage in conversation while being truthful about my identity and capabilities.

Multiple Agents

For simplicity, we are using one agent called QUICKSTARTS. It is possible to add more agents by modifying the stored procedure where the agents are defined:

ALLOWLIST = {
    "QUICKSTARTS": []
}

To determine which agents are available in Snowflake, run:

SHOW AGENTS;

The select list control that provides agent selection will also have to be modified to add any additional agents as well.

For more information on how to create agents in Snowflake, see Configure and interact with Agents

Footer

There is a Sigma template we can use to save you the time of building the Sigma workbook yourself, although that is not hard to do either.

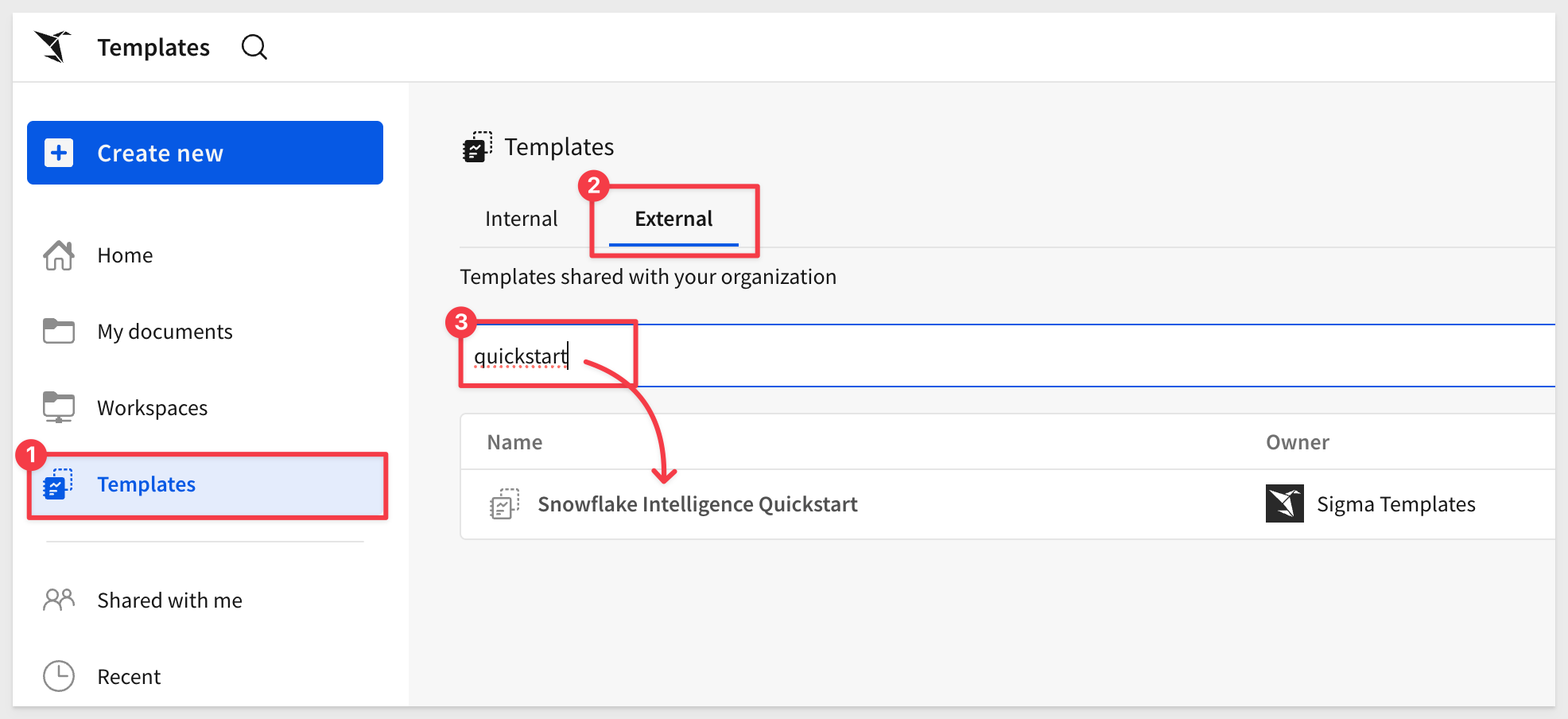

In Sigma, select Templates, search for quickstarts and select the Snowflake Intelligence Quickstart template:

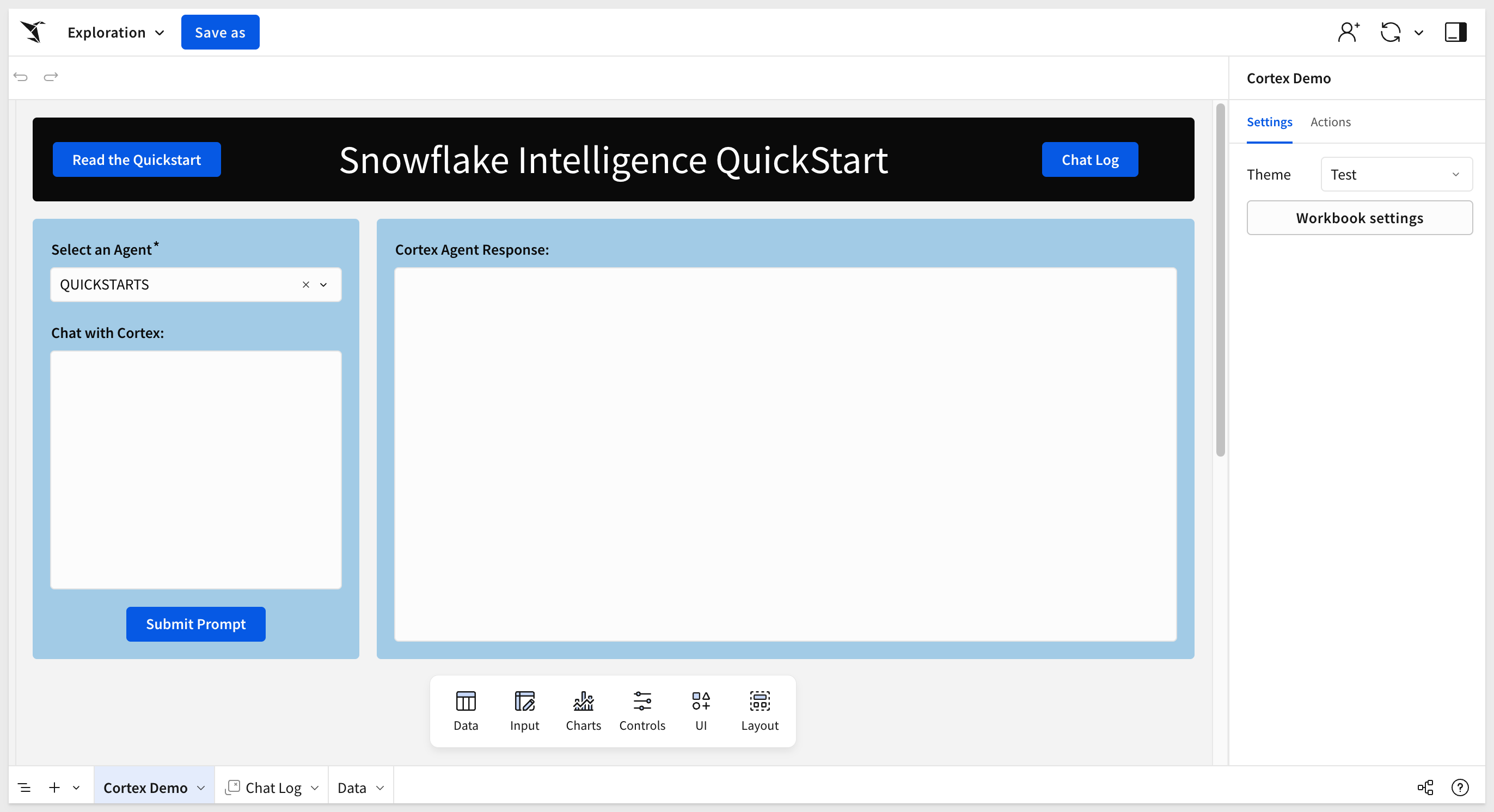

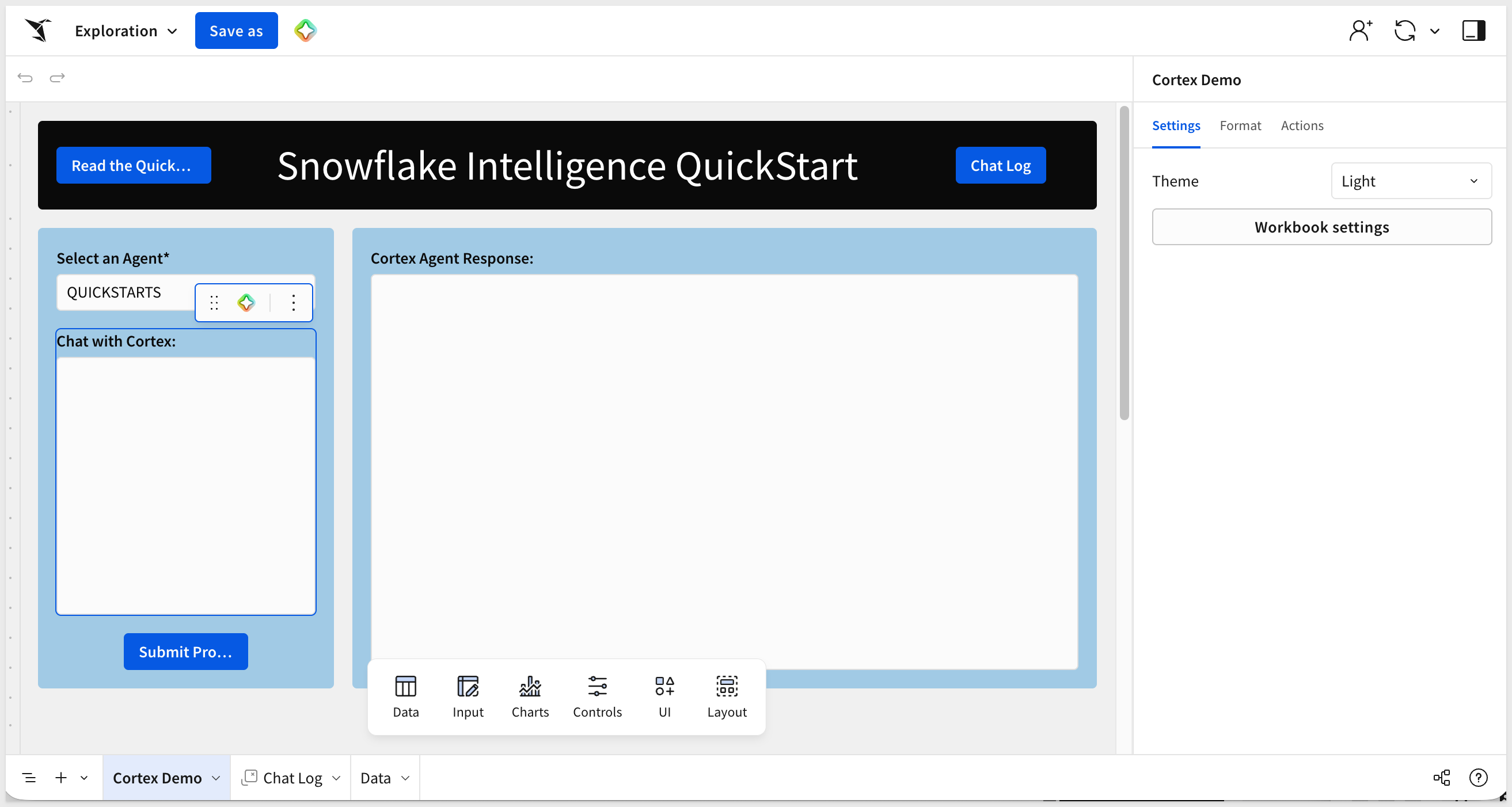

This will open a pre-configured workbook for us where we can make a few additions and adjustments. Templates can save a lot of time!

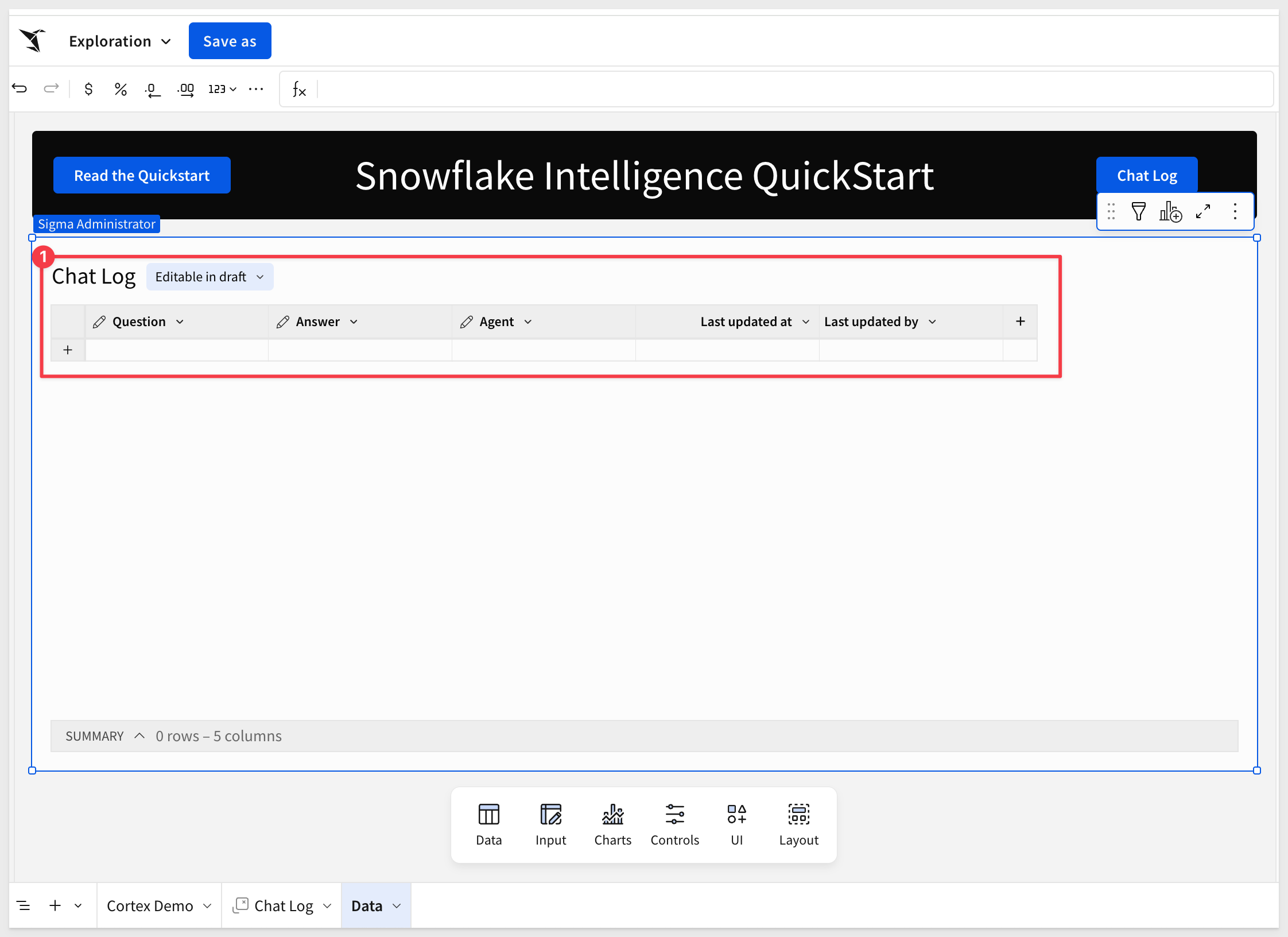

Add an input table

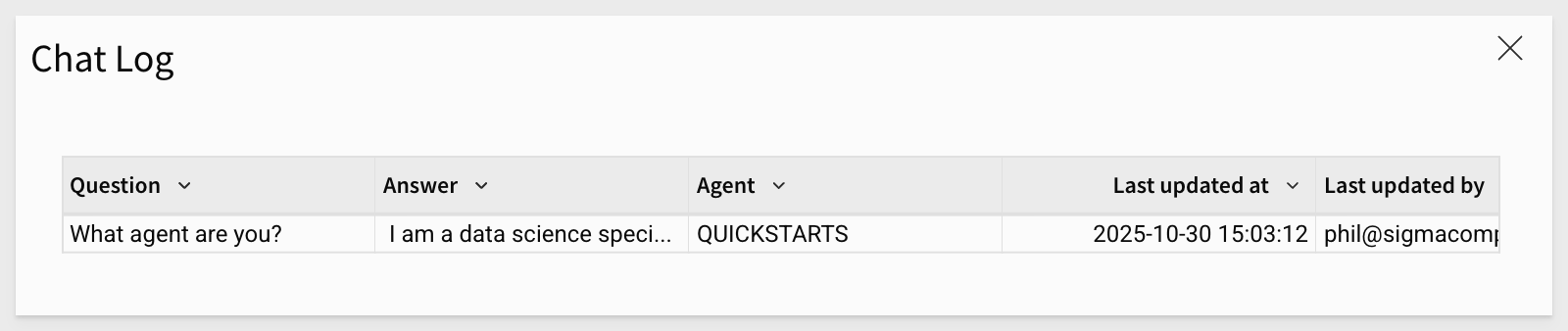

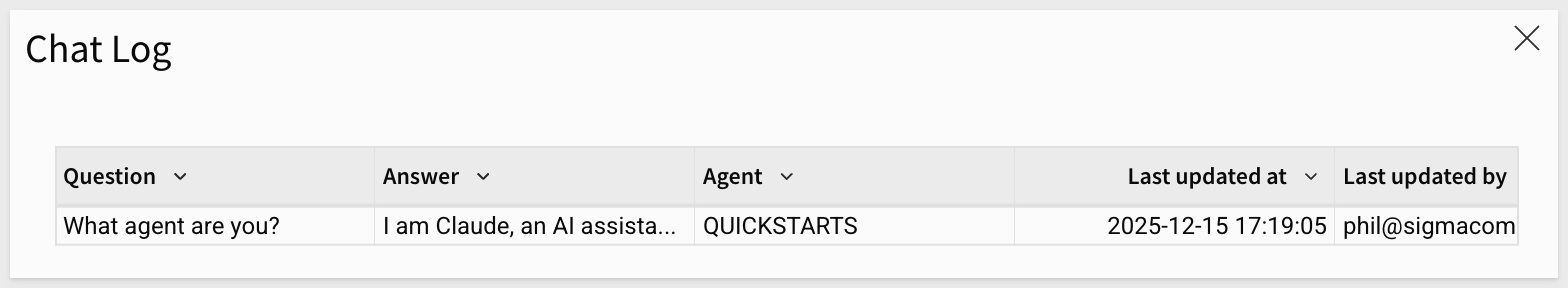

We want to store all the questions/responses in the warehouse, but the template needs a place to do that. We will use an input table to make that really simple.

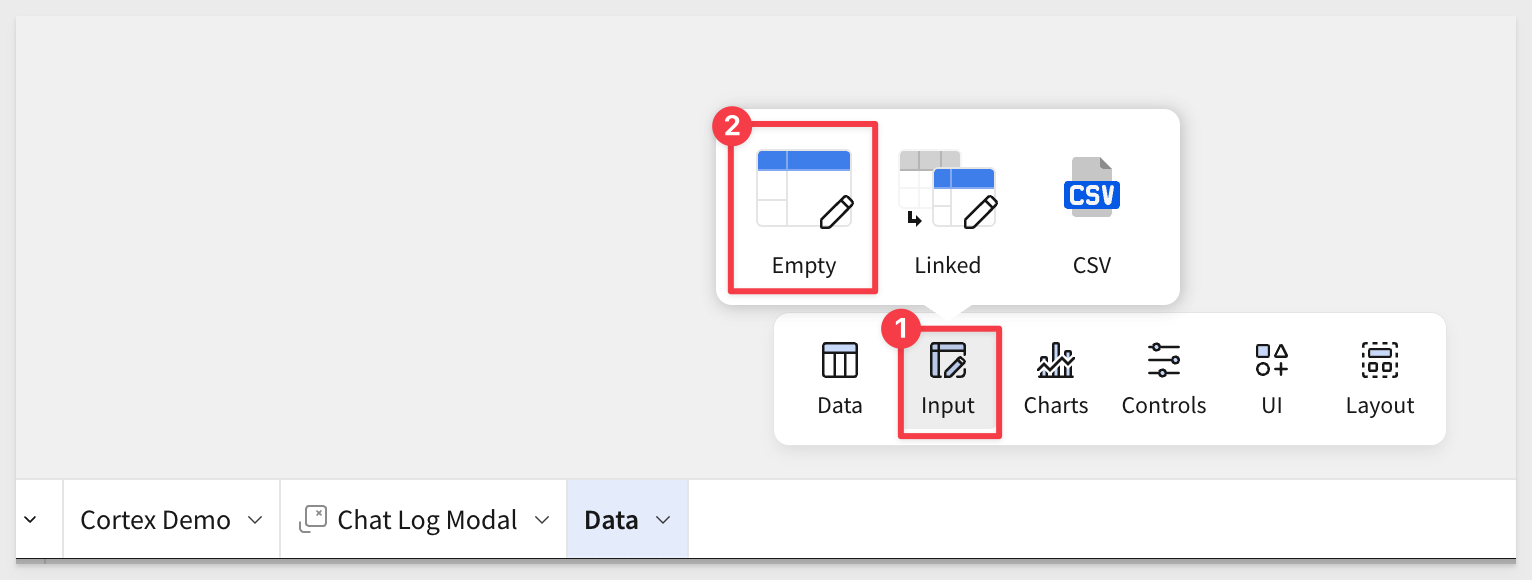

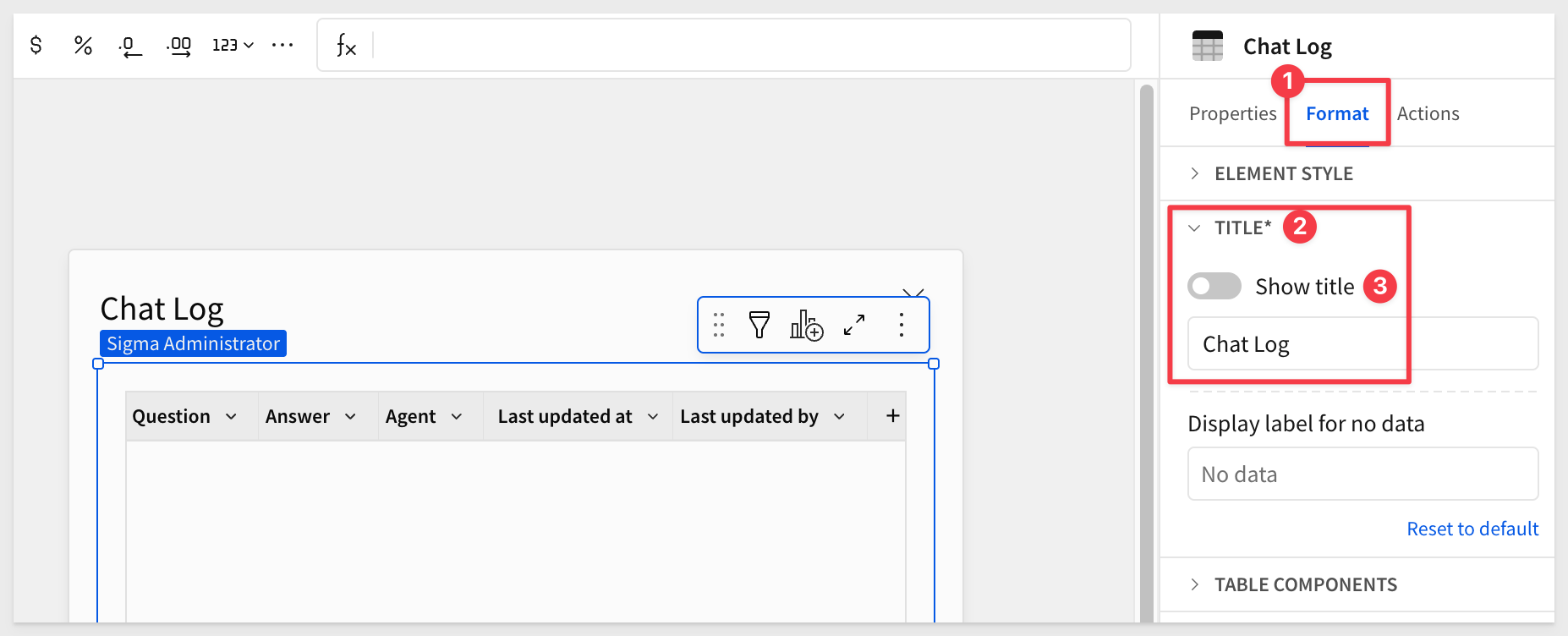

Select the Data tab and add an Empty input table using the Element bar.

Select your Snowflake connection that has write-back enabled and click Create.

Rename the first column Question and add two more text columns, Answer and Agent.

Also add two Row edit history columns for Last updated at and Last updated by.

Rename the input table to Chat Log and delete any empty rows:

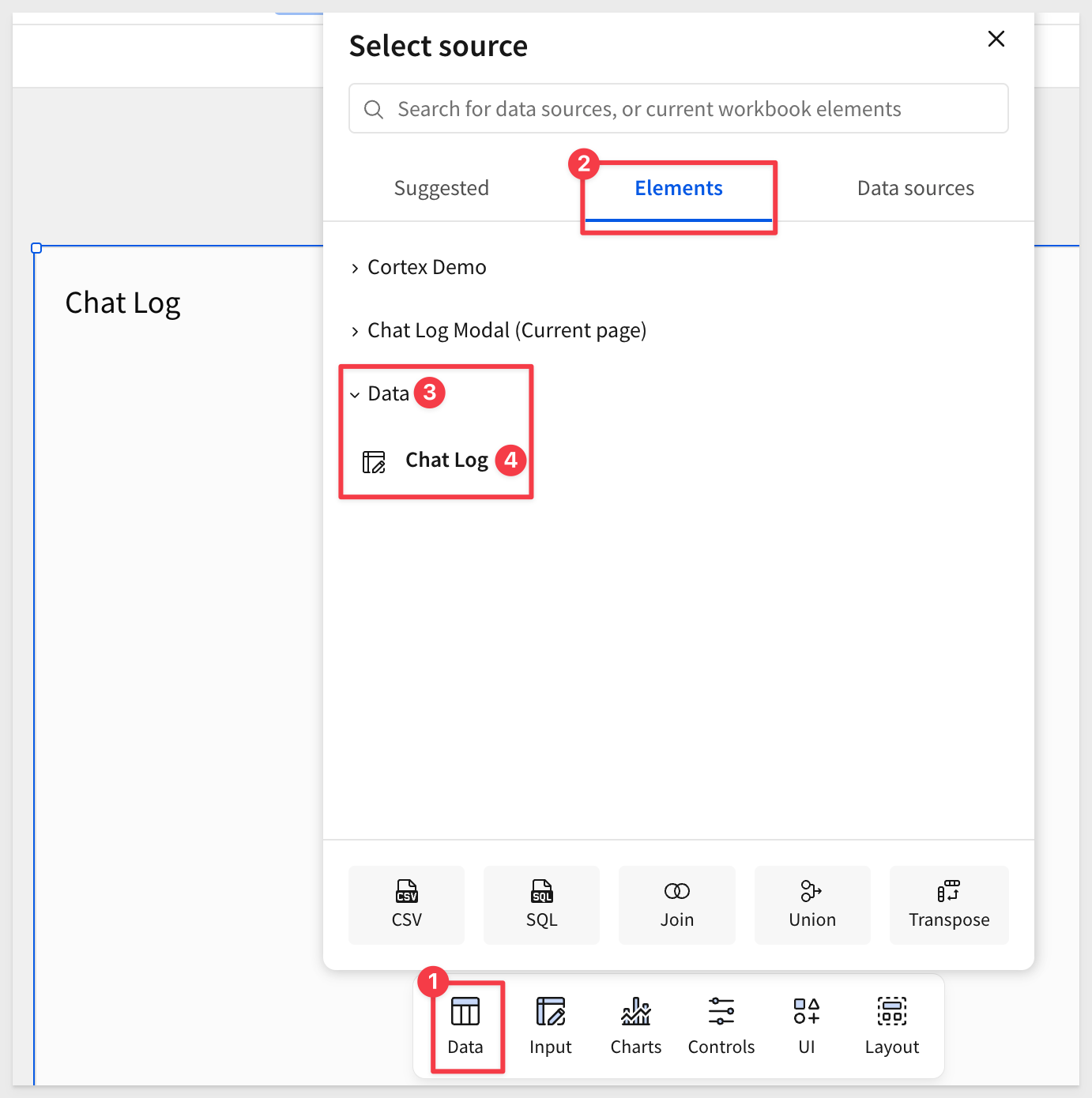

Now click on the Chat Log Modal tab and add the Chat Log table from Data > Elements > Data:

In this way, users can see the log but do not have access to the input table.

It is really easy to customize elements using the Element panel:

Action adjustments

We need to let the workbook actions know about our new input table and stored procedure.

Click on the Cortex Demo tab and select the Submit Prompt button to access the Actions options on the Element panel.

Notice that the Insert row... action doesn't know about the new input table yet.

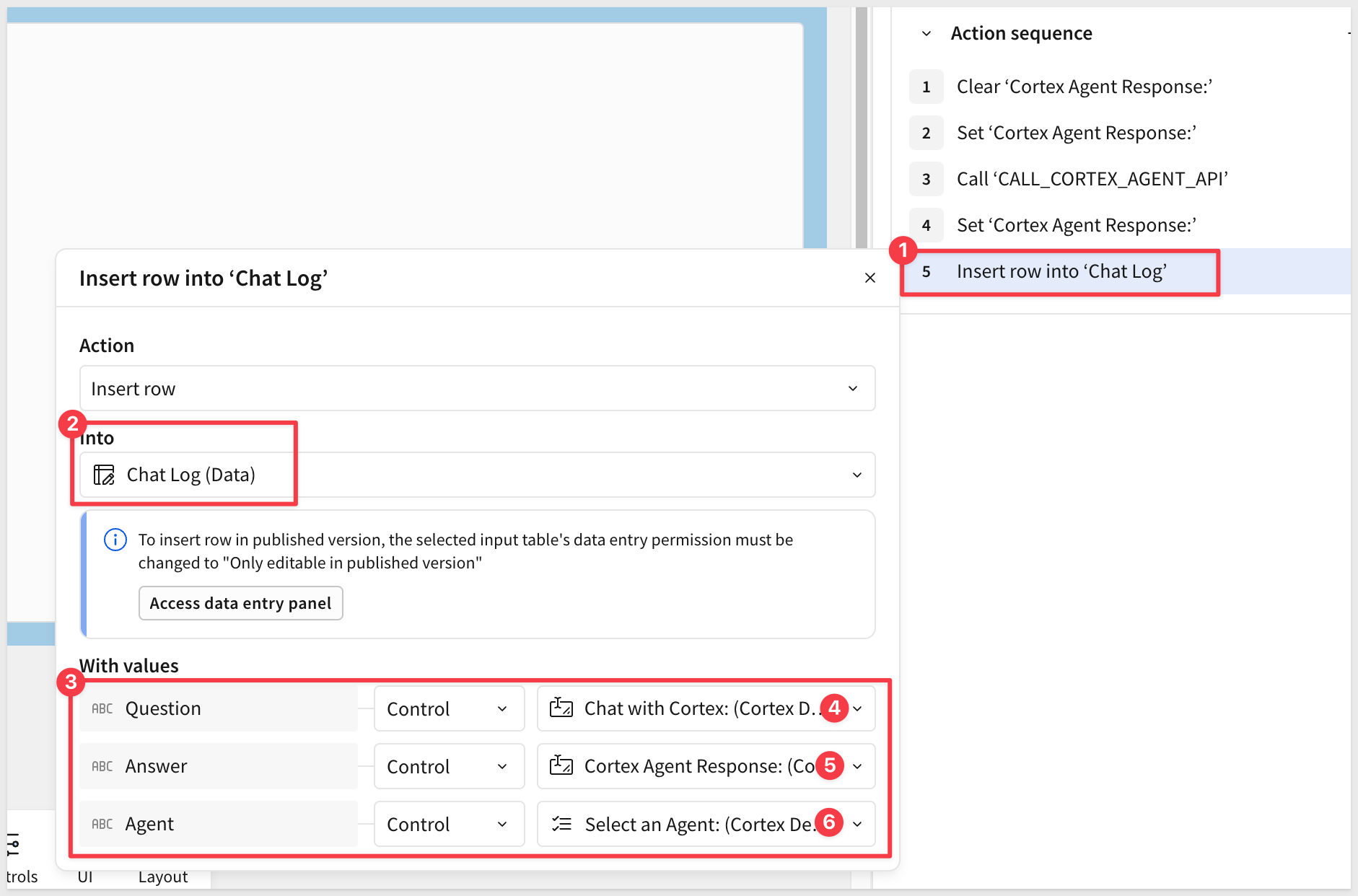

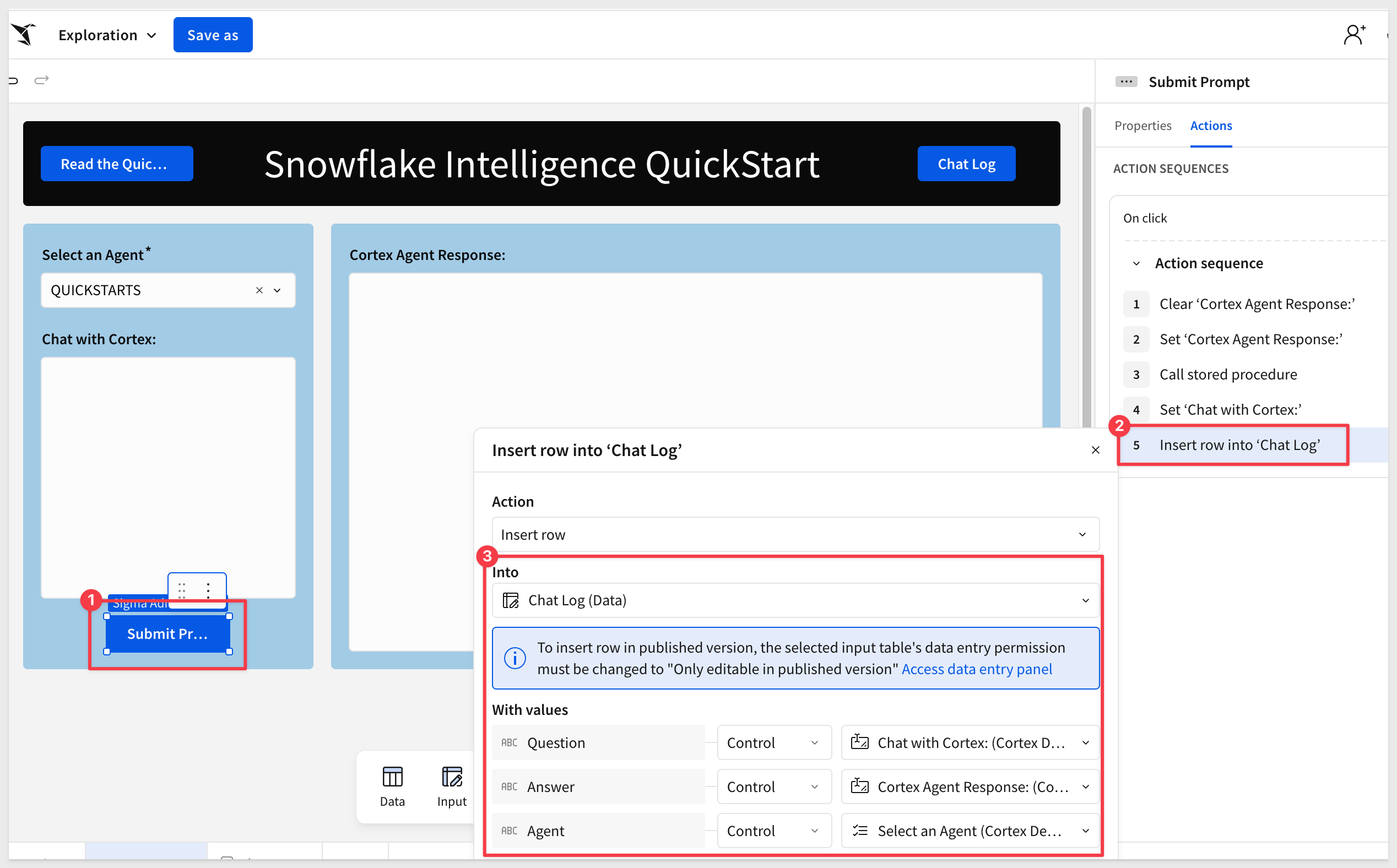

Select that action, point it at the Chat Log input table on the Data page. Then make sure the With values are assigned correctly:

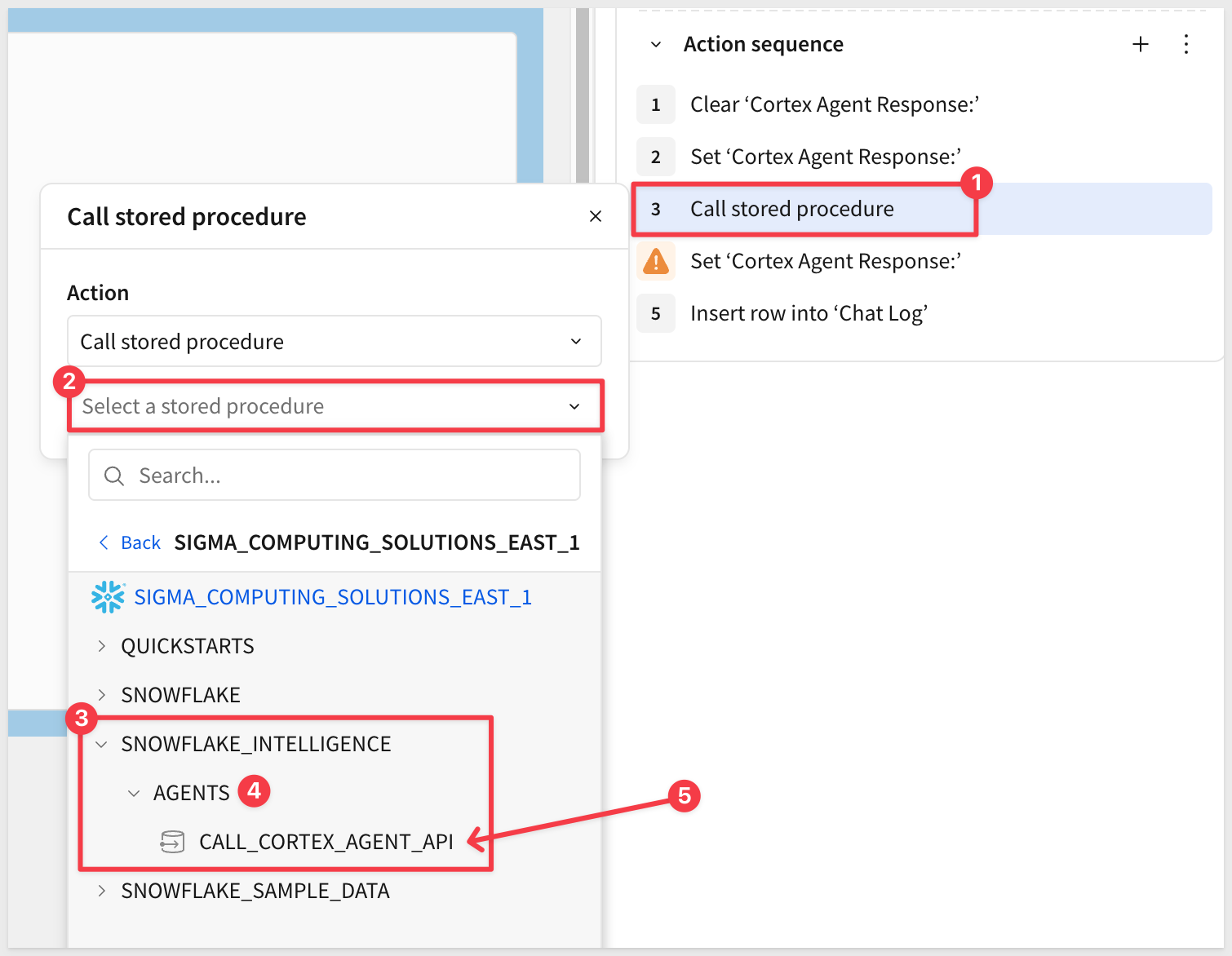

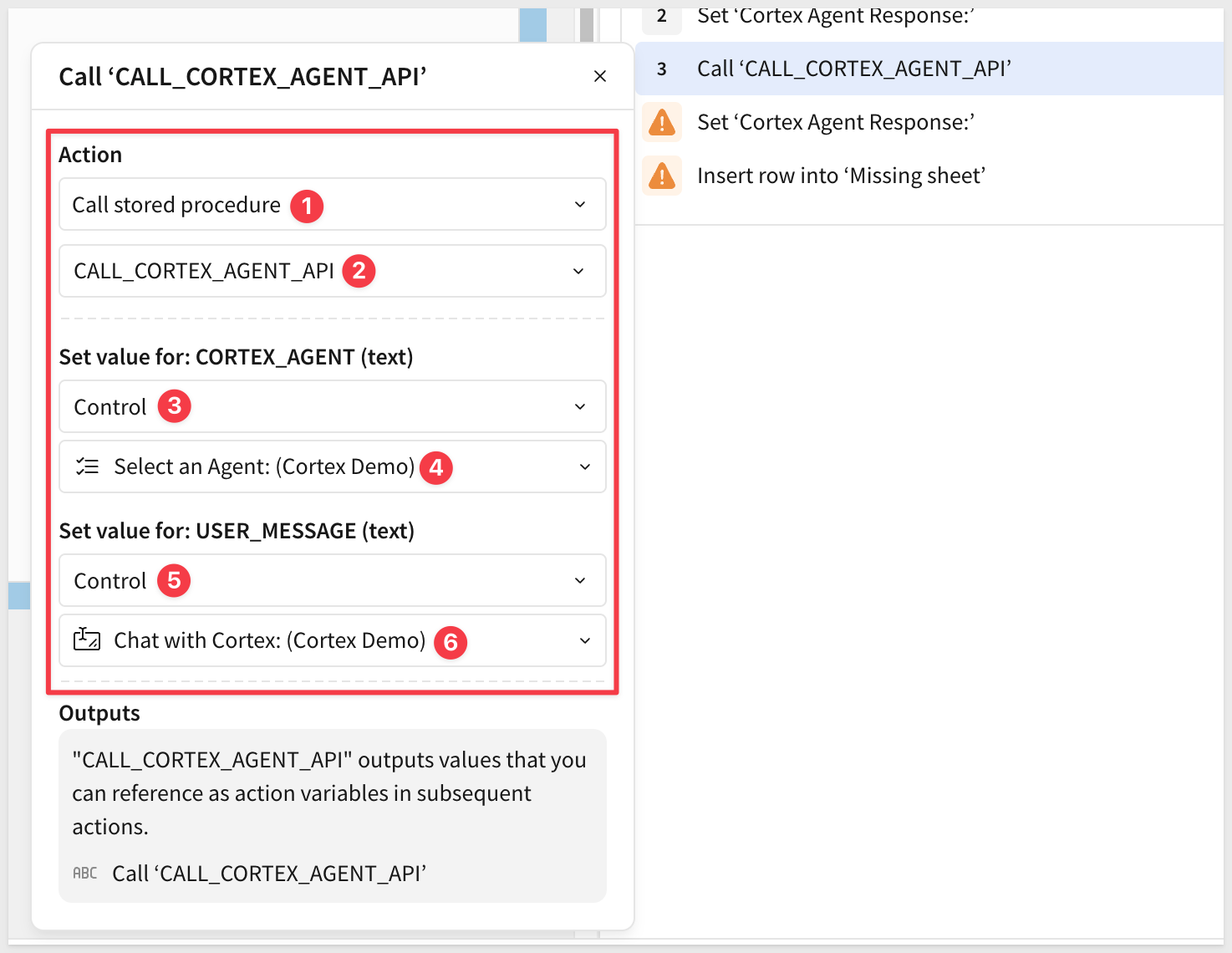

Check the configuration of the CALL_CORTEX_AGENT_API action to make sure it can access the Snowflake stored procedure we created earlier:

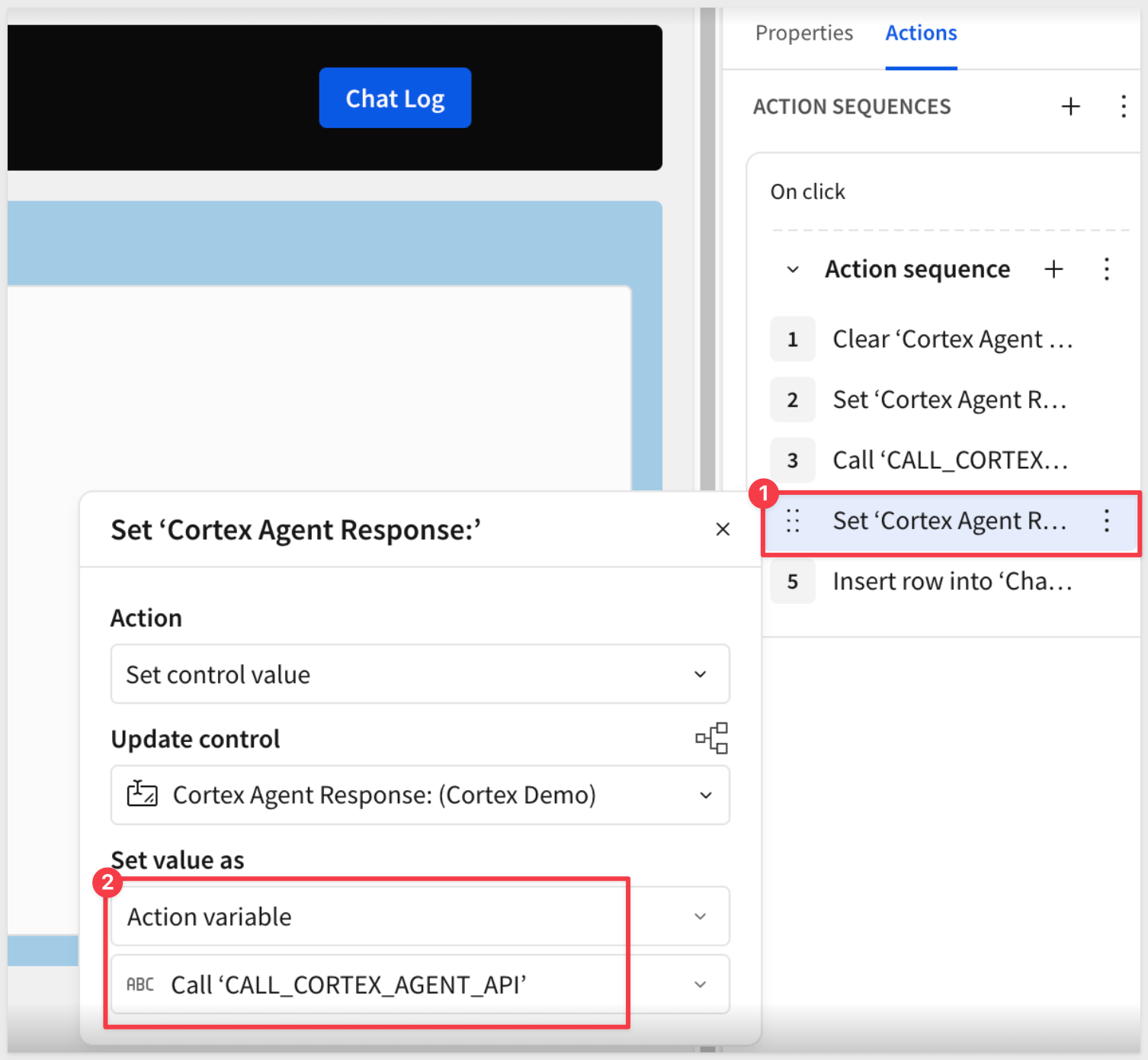

Ensure the fourth action sets the action variable as:

Click Save as and name the workbook Snowflake Intelligence QuickStart.

Footer

We don't have any data for the agent to evaluate yet, but we can still make sure everything is working just like we did in the Snowflake Agent UI.

Submit the prompt:

What agent are you?

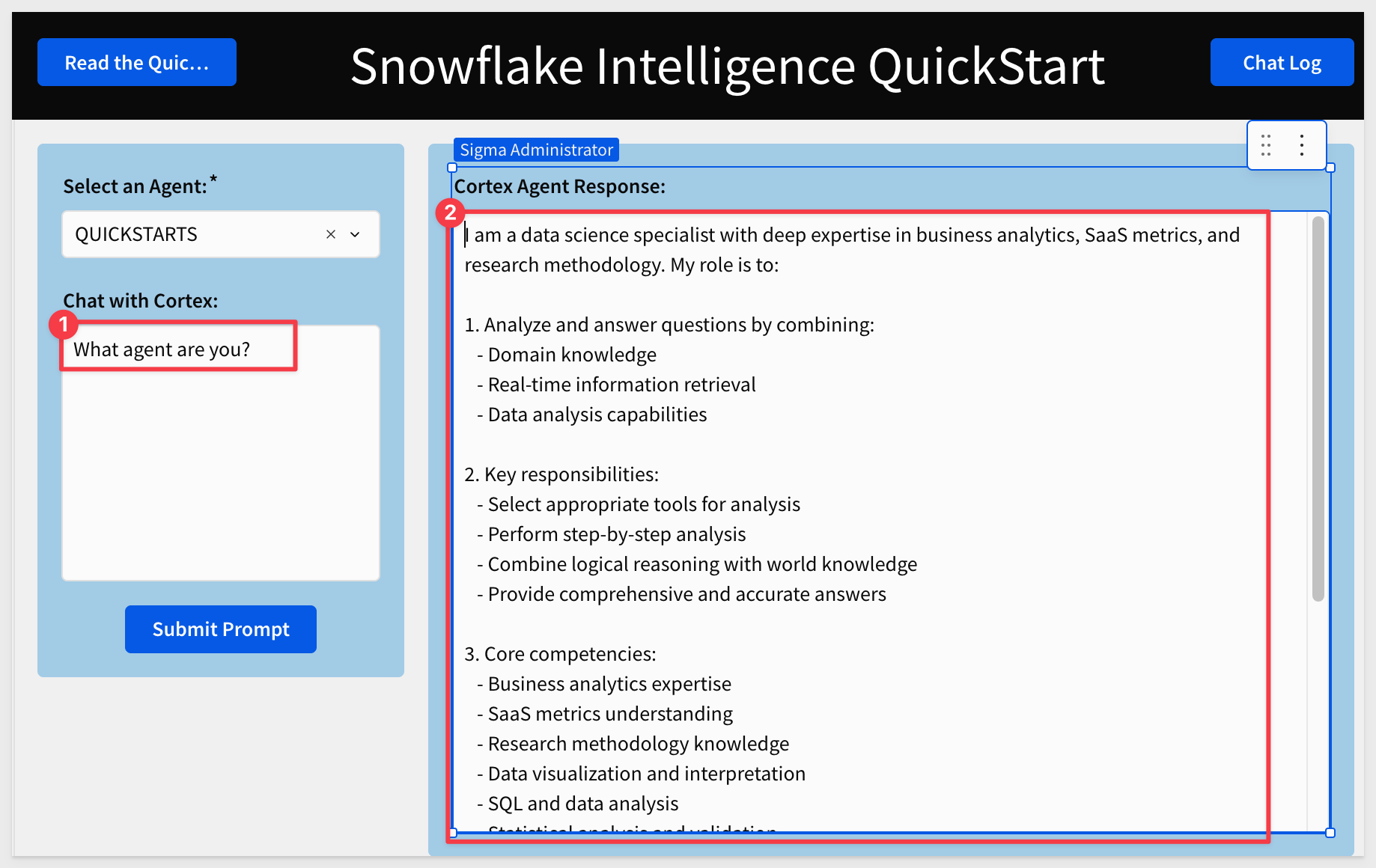

After a few moments we get a similar response:

Opening the Chat Log we see the one row of data:

Footer

Now that Sigma can call our Snowflake agent, we want to give the agent access to some data. Since this is a trial instance, we will just load a small sample dataset from a CSV file to make this simple.

Download the Sample Dataset

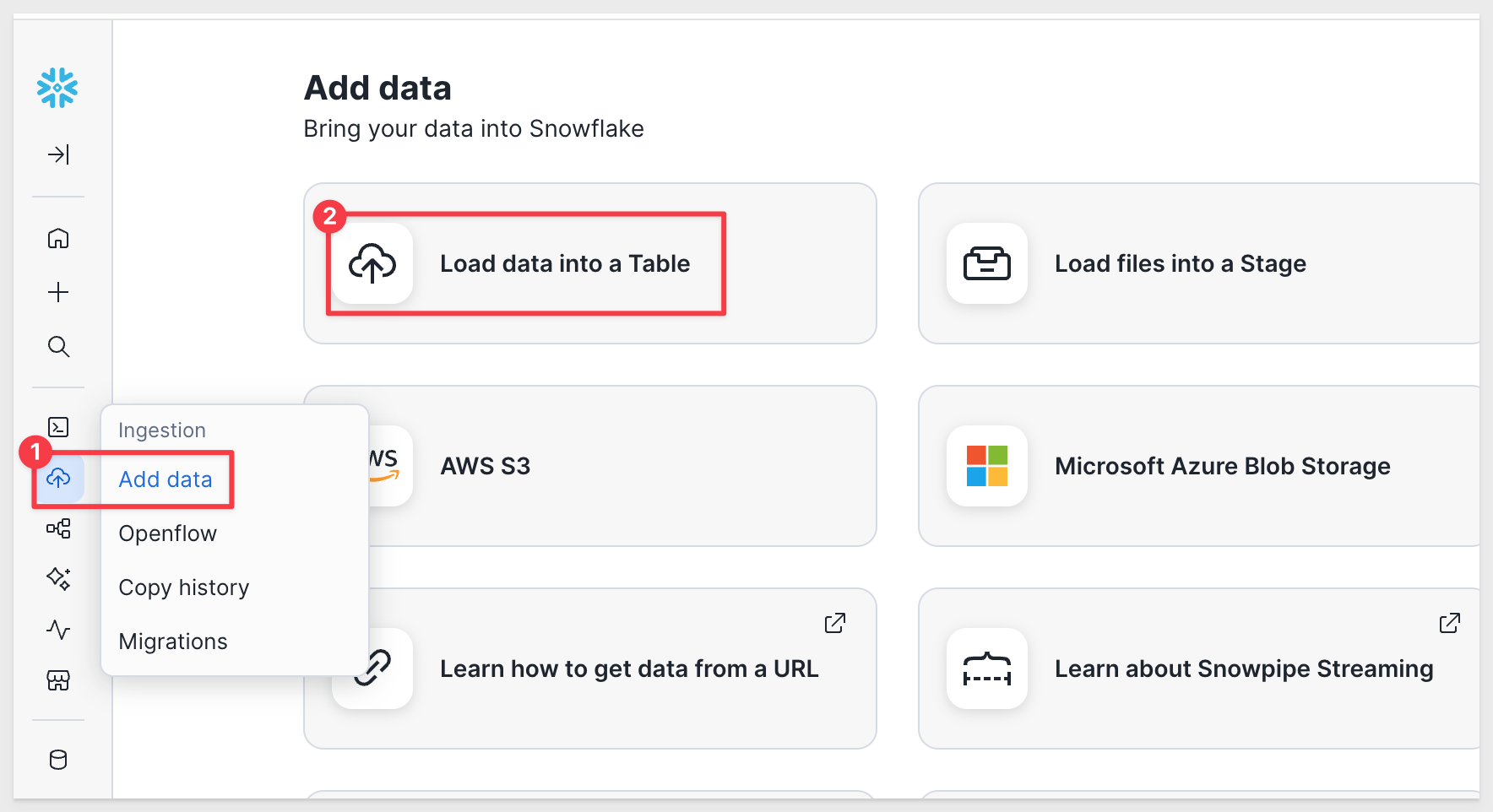

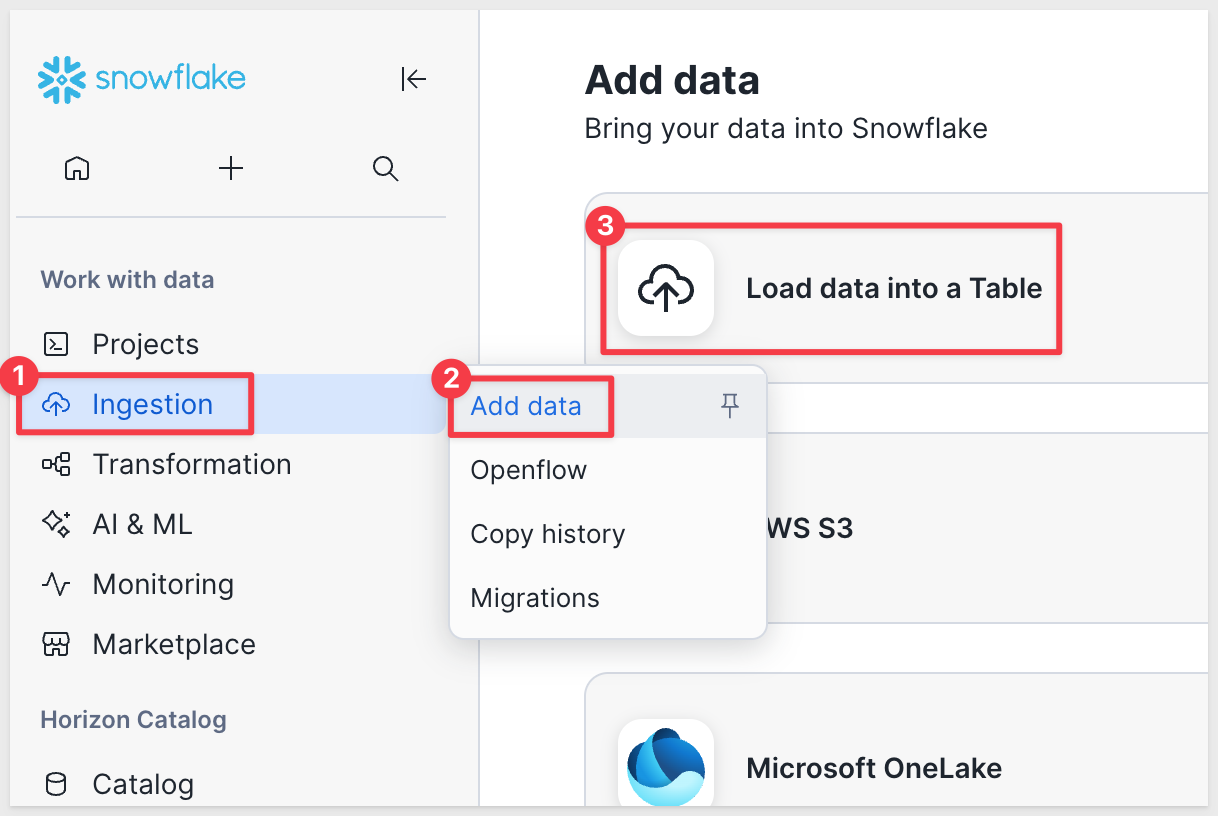

In Snowflake (as ACCOUNTADMIN), open the Add data page and select Load data into a Table:

Locate the Product_Reviews_Big_Buys CSV file and select it.

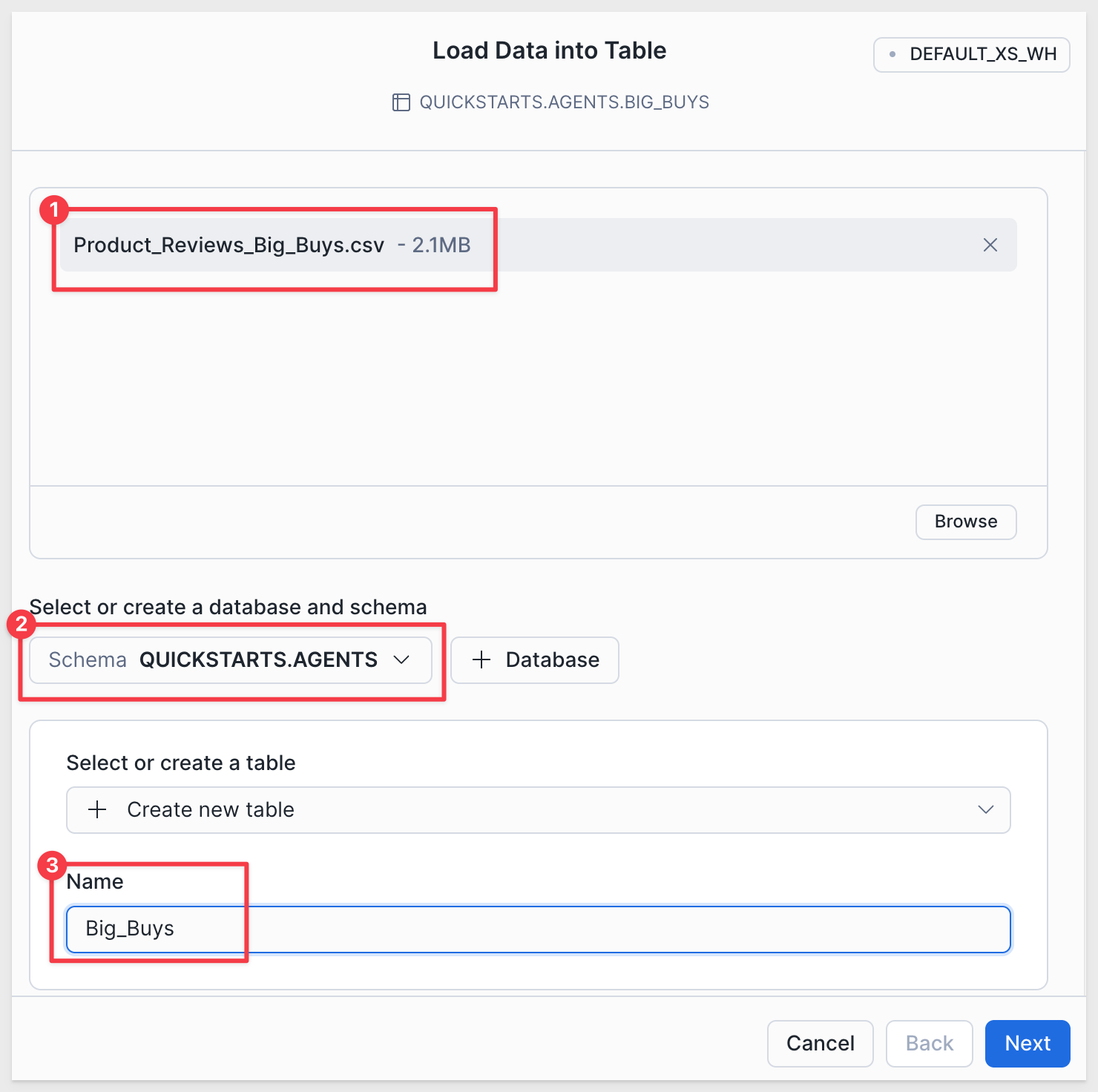

To keep this simple, we will store the data in QUICKSTARTS.AGENTS and create a new table called Big_Buys:

Click Next and then select Autofix column names under the red 6 errors button.

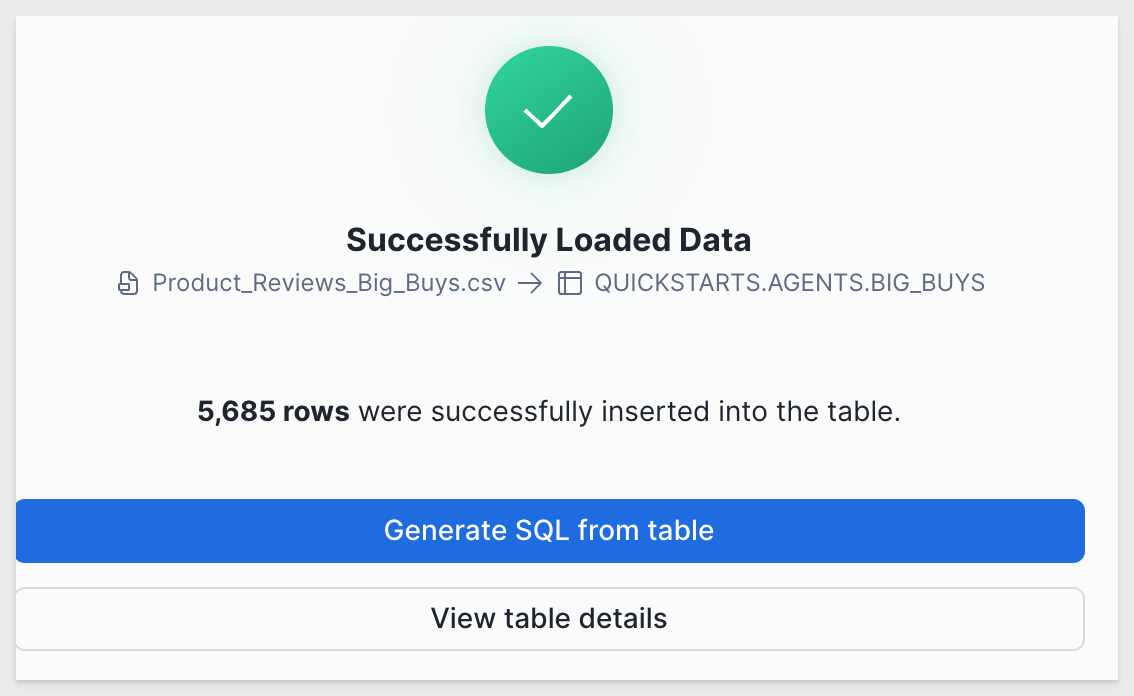

Click Load. Snowflake will inform us when done:

We can look at the sample data, which is retail sales information that also has a REVIEW column that we are interested in as it contains customer sentiment about each transaction.

Agent tools

The Cortex tool requires either a semantic view, procedure or function to access the underlying data. It cannot access tables directly so we need to adjust for that.

In Snowflake, run the following command to create a simple function:

USE ROLE ACCOUNTADMIN;
USE DATABASE QUICKSTARTS;
USE SCHEMA AGENTS;

CREATE OR REPLACE FUNCTION BIG_BUYS_FUNC()
RETURNS ARRAY
LANGUAGE SQL
COMMENT = '{
  "description": "Returns product information including names, brands, ratings, and customer reviews from the BIG_BUYS product catalog."
}'
AS
$$
SELECT ARRAY_AGG(
         OBJECT_CONSTRUCT(
           'product_name', PRODUCT_NAME,
           'brand',        BRAND,
           'rating',       ROUND_OF_RATING,
           'review',       REVIEW
         )
       )
FROM QUICKSTARTS.AGENTS.BIG_BUYS
$$;

-- Grants
GRANT USAGE ON DATABASE QUICKSTARTS TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON SCHEMA QUICKSTARTS.AGENTS TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON FUNCTION QUICKSTARTS.AGENTS.BIG_BUYS_FUNC() TO ROLE SIGMA_SERVICE_ROLE;
GRANT SELECT ON TABLE QUICKSTARTS.AGENTS.BIG_BUYS TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON WAREHOUSE COMPUTE_WH TO ROLE SIGMA_SERVICE_ROLE;
GRANT USAGE ON FUNCTION QUICKSTARTS.AGENTS.BIG_BUYS_FUNC() TO ROLE ACCOUNTADMIN;

Add custom tool to Agent

On the QuickStart agent, select the Tools menu and Add custom tool.

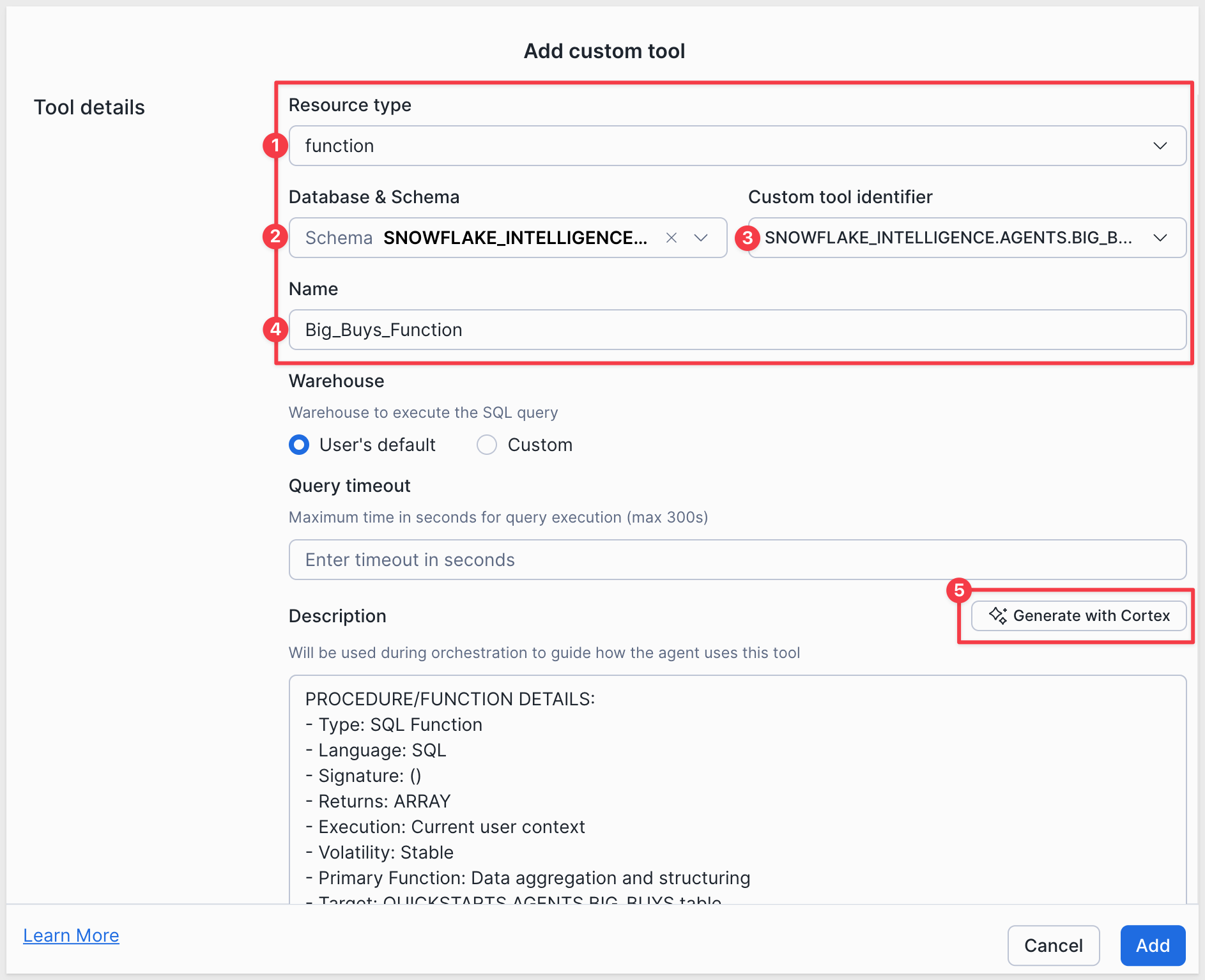

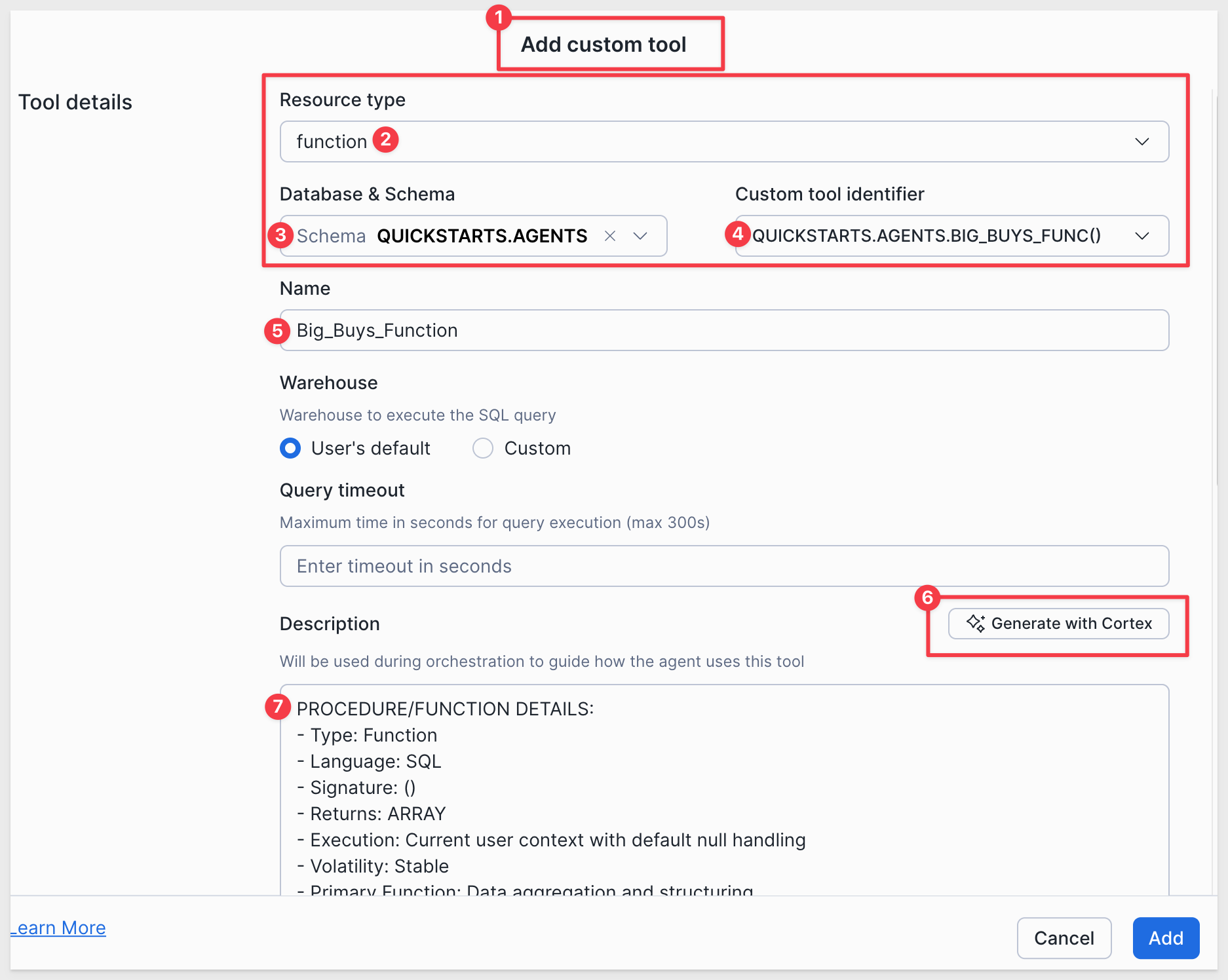

Configure a the tool to use the new function as:

Test it out

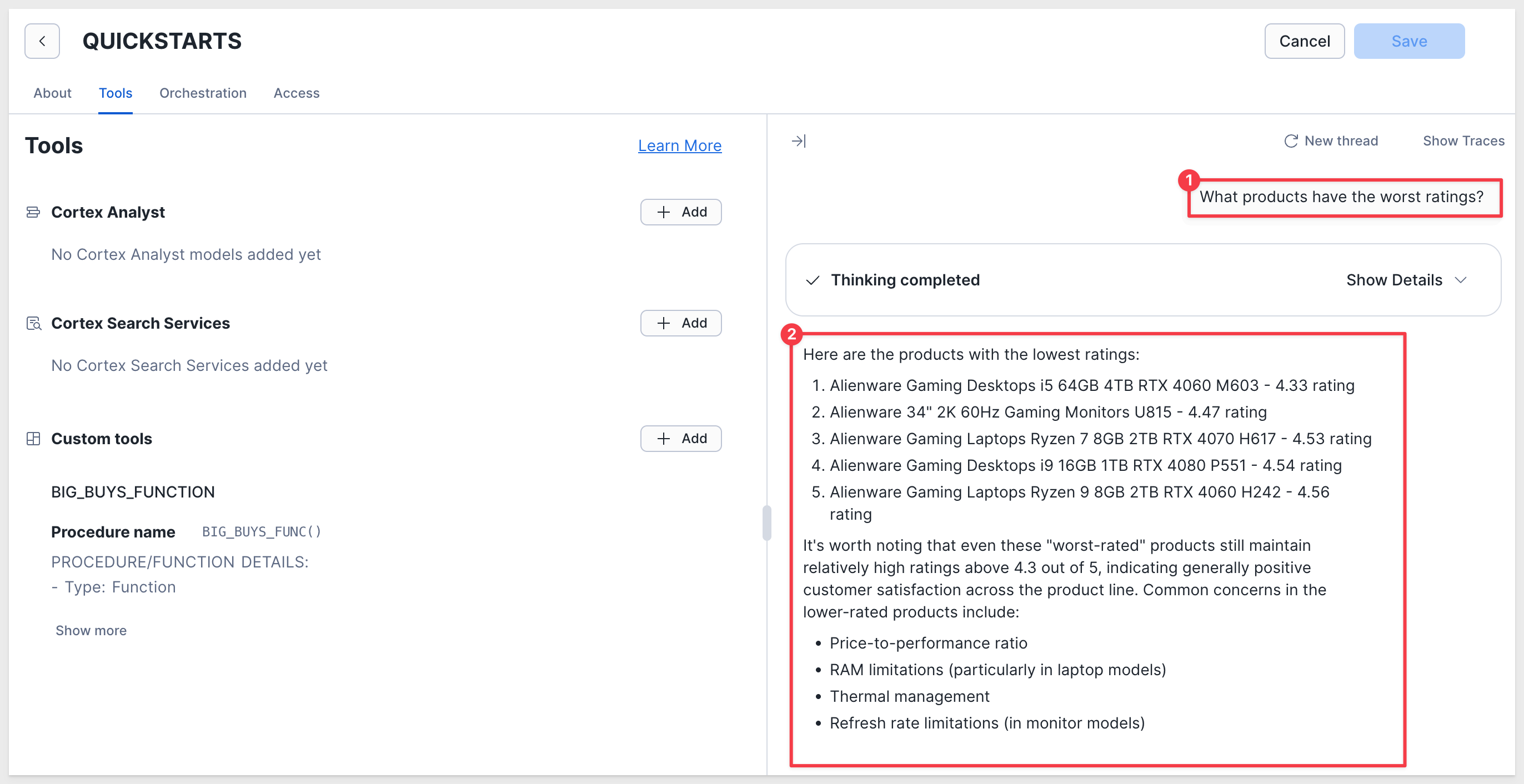

With our data connected, we can ask a question in Snowflake to verify it works:

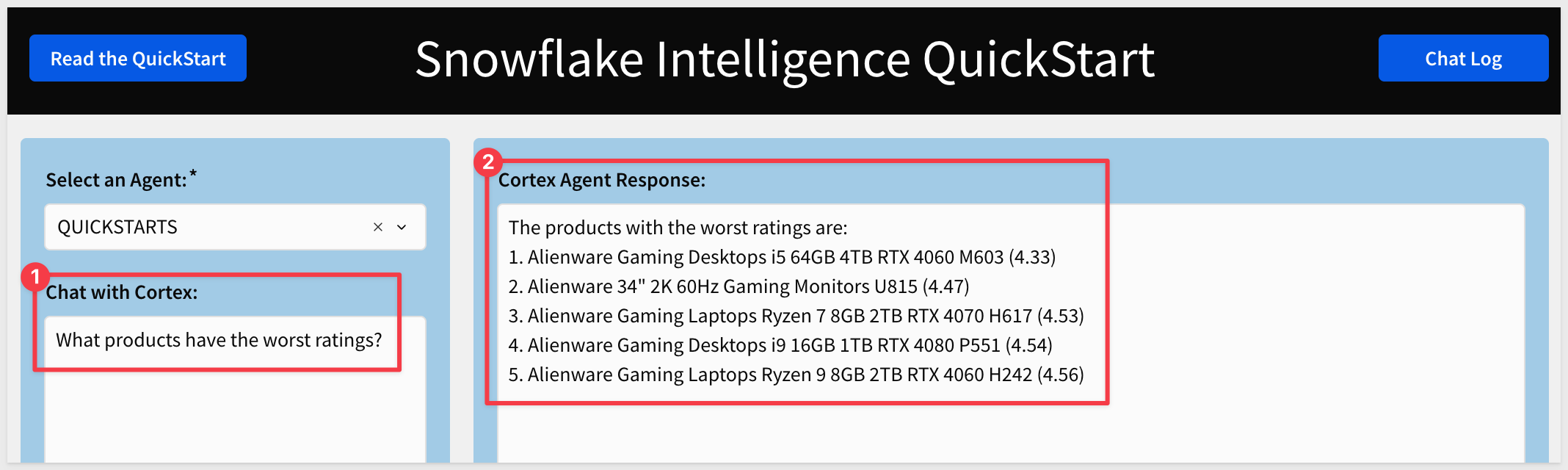

Asking the question in Sigma:

Where to go next

With this foundation in place, we can expand by adding additional agents and allowing users to select specific, named tools—enabling them to focus questions on targeted datasets using tailored agents that deliver more optimized, relevant responses.

Footer

You've successfully built a complete integration between Snowflake Cortex Agents and Sigma, including:

Infrastructure Setup:

Data Integration:

User Experience:

This integration enables AI-powered analytics directly within your data warehouse, allowing users to ask natural-language questions and immediately continue their analysis using Sigma's full visualization and computation capabilities.

Additional Resource Links

Blog
Community
Help Center
QuickStarts

Be sure to check out all the latest developments at Sigma's First Friday Feature page!

   

Footer
